GN743.7 Oil Level Sight Glasses Brass Float Conical Thread metallic seal pressurised tank

Standard Machine Elements > Oil Level Sight Glasses, Level Indicators & Plugs > Oil Level Sight Glasses
< Previous Product Next Product >

GN743.7 Oil Level Sight Glass, Conical Thread, Brass & Float Glass





Type A - with contrast screen

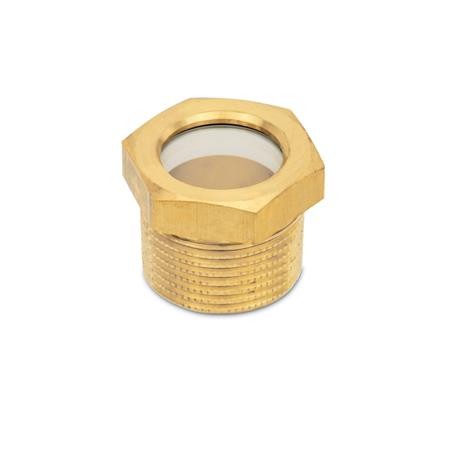

Type B - without contrast screen

Select Values to Buy:

Tech Spec:



GN743.7 Oil Level Sight Glass, Brass Float Glass, Conical Thread

The conical thread of the oil level sight glasses GN743.7 makes a metallic seal possible. When tightening the conical male thread R it blocks itself with the appropriate cylindrical female thread Rp.

With the datum plane a the R male thread has the same thread diameter as the Rp female thread, so that it can be screwed in by hand. Stronger tightening using a tool increases the length of engagement and seals the screw connection.

Additionally a sealant (hemp or teflon band) is usually used. The R thread is roughened, so that the sealant does not shift when screwing in.

Oil level sight glasses GN743.7 can be used on pressurised tanks. Pressure and vacuum pressure test data is available.

Specification

Body - Brass, CuZn40Pb2

Contrast screen - Technoploymer (Polysulfon), temperature resistant up to 100 °C

Sight glass - float-glass

O-rings - rubber, NBR (Perbunan)

An EPDM seal is also available on request.

RoHS compliant

Select / Deselect Visible Columns
Close
Hided1Show
Hided2
Male Thread
Conical
Show
HideTypeShow
Hidea
Datum Plane
Show
Hided3Show
Hided4
Female Thread
Cylindrical
Show
Hided4
Female Thread
Cylindrical
Show
HideeShow
Hidel1Show
Hidel2Show
Hidel3
Usable Thread
Length
Show
HidesShow
Hidep
Thread
Pitch
Show
PartCoded1d2
Male Thread
Conical
Typea
Datum Plane
d3d4
Female Thread
Cylindrical
d4
Female Thread
Cylindrical
el1l2l3
Usable Thread
Length
sp
Thread
Pitch
Mass

GN743.7-11-R3/8-A11R3/8A6.416.7Rp3/8~2213610.1191.340.019
GN743.7-11-R3/8-B11R3/8B6.416.7Rp3/8~2213610.1191.340.02
GN743.7-11-3/8NPT-A113/8NPTA6.117.1~3/8NPT22156~19.11.410.019
GN743.7-11-3/8NPT-B113/8NPTB6.117.1~3/8NPT22156~19.11.410.2
GN743.7-14-R1/2-A14R1/2A8.221Rp1/2~27.517713.2241.810.04
GN743.7-14-R1/2-B14R1/2B8.221Rp1/2~27.517713.2241.810.033
GN743.7-14-1/2NPT-A141/2NPTA8.121.2~1/2NPT27.5167~23.81.810.031
GN743.7-14-1/2NPT-B141/2NPTB8.121.2~1/2NPT27.5167~23.81.810.034
GN743.7-18-R3/4-A18R3/4A9.526.4Rp3/4~3118814.5271.810.05
GN743.7-18-R3/4-B18R3/4B9.526.4Rp3/4~3118814.5271.810.049
GN743.7-18-3/4NPT-A183/4NPTA8.626.6~3/4NPT33188~28.61.810.055
GN743.7-18-3/4NPT-B183/4NPTB8.626.6~3/4NPT33188~28.61.810.06
GN743.7-24-R1-A24R1A10.433.2Rp1~40.521916.8362.30.098
GN743.7-24-R1-B24R1B10.433.2Rp1~40.521916.8362.30.091
GN743.7-24-1NPT-A241NPTA10.233.7~1NPT41.5228~34.92.210.073
GN743.7-24-1NPT-B241NPTB10.233.7~1NPT41.5228~34.92.210.07
GN743.7-32-R11/4-A32R11/4A12.742Rp11/4~5324919.1462.30.149
GN743.7-32-R11/4-B32R11/4B12.742Rp11/4~5324919.1462.30.14
GN743.7-32-11/4NPT-A3211/4NPTA10.742.2~11/4NPT51.5239~44.52.210.135
GN743.7-32-11/4NPT-B3211/4NPTB10.742.2~11/4NPT51.5239~44.52.210.133
