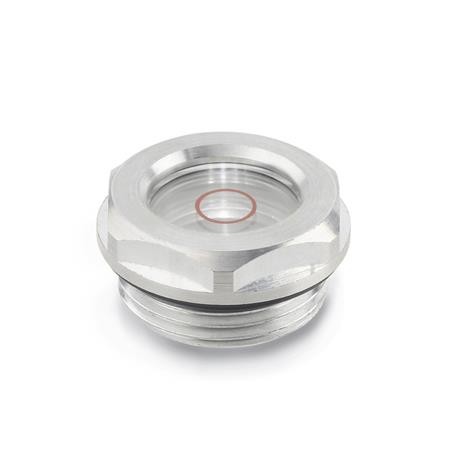

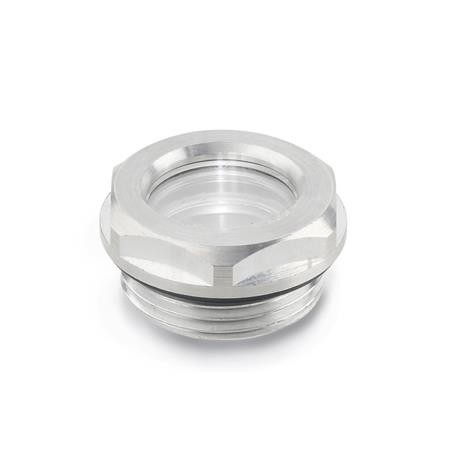

GN744 Oil Level Sight Glass, Aluminium, Prismatic Plastic View



Select Values to Buy:

Tech Spec:



GN744 Oil Level Sight Glass, Aluminium, Prismatic Plastic View

Prismatic oil level sight glasses GN744 use the prismatic effect of a cats eye to display the oil level unaffected by oil colour or oil viscosity. The advantage of this effect is particularly obvious in the case of under or overfilling or for inspection under unfavourable light conditions.

The seal is housed in a radial groove in the aluminium body and hence cannot be lost. In addition it cannot be extruded when tightening the sight glass.

For this reason the seal can be of a relatively soft material which increases it's sealing capacity even on uneven surface.

Oil level sight glasses GN744 can also be used on pressurised tanks. Pressure and vacuum pressure test data is available.

Installation Information

When mounting oil level sight glasses on walls of less than 4 mm thickness please use fixing nuts GN543.1

Specification

Body - Aluminium, fine turned.

Sight glass - plastic, crystal-clear Polyamide (PA 6-T)

Temperature resistant up to 110°C

Sealing ring - rubber NBR (Perbunan)

Select / Deselect Visible Columns
PartCoded1d2Typed3l1l2sMaterialMass

GN744-7-G1/4-B7G1/4B207.56.518AL0.005
GN744-7-M12X1,5-B7M12x1,5B207.56.518AL0.005
GN744-11-G3/8-B11G3/8B2287.520AL0.006
GN744-11-G3/8-C11G3/8C2287.520AL0.006
GN744-11-M16X1,5-B11M16x1,5B2287.520AL0.006
GN744-11-M16X1,5-C11M16x1,5C2287.520AL0.006
GN744-14-G1/2-A14G1/2A268.57.523AL0.012
GN744-14-G1/2-B14G1/2B268.57.523AL0.008
GN744-14-G1/2-C14G1/2C268.57.523AL0.008
GN744-14-M20X1,5-A14M20x1,5A268.57.523AL0.005
GN744-14-M20X1,5-B14M20x1,5B268.57.523AL0.008
GN744-14-M20X1,5-C14M20x1,5C268.57.523AL0.008
GN744-18-G3/4-A18G3/4A329830AL0.015
GN744-18-G3/4-B18G3/4B329830AL0.015
GN744-18-G3/4-C18G3/4C329830AL0.015
GN744-18-M26X1,5-A18M26x1,5A329830AL0.015
GN744-18-M26X1,5-B18M26x1,5B329830AL0.014
GN744-18-M26X1,5-C18M26x1,5C329830AL0.014
GN744-18-M27X1,5-A18M27x1,5A329830AL0.016
GN744-18-M27X1,5-B18M27x1,5B329830AL0.016
GN744-18-M27X1,5-C18M27x1,5C329830AL0.016
GN744-24-G1-A24G1A40118.536AL0.025
GN744-24-G1-B24G1B40118.536AL0.022
GN744-24-G1-C24G1C40118.536AL0.022
GN744-24-M33X1,5-A24M33x1,5A40118.536AL0.028
GN744-24-M33X1,5-B24M33x1,5B40118.536AL0.023
GN744-24-M33X1,5-C24M33x1,5C40118.536AL0.023
