Please select desired options to reveal part number, price and availability
Options
Type A - without dipstick.

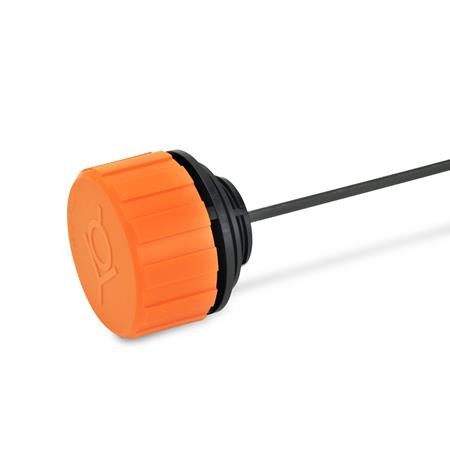

Type B - with dipstick.
Product Description
GN774 Breather Caps, Plastic, with Filter, with Double Valve, Optional Dipstick
Breather caps GN 774 are fitted either with a threaded neck or with a bayonet connection and they can also be combined with a filler strainer GN 664 or GN 664.1.
The bayonet version is fitted with a chain to avoid losing it.
MAX-MIN markings can easily be added to the flats of a dipstick (see GN109).
For function and operational criteria of breather plugs GN774 see function description in Technical Data.
Specification
Plastic PA, temperature resistant up to 80°C.
Lower part (threaded part) - Black.
Sealing ring - Rubber, NBR (Perbunan)
Air filter - PU foam, Polyurethane, Filtration 40 m.
Dipstick - Steel ST, phosphated.
