GN2276 Right-Angle Spirit Level, for Mounting with Screws

CloseNextPrevious



CloseNextPrevious

GN2276: Right-Angle Spirit Level
Type: JV - Material / Finish: ALS



CloseNextPrevious

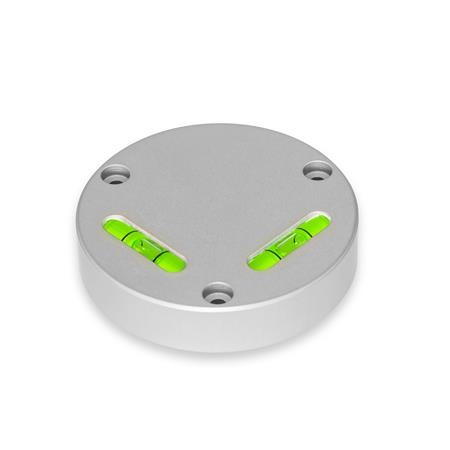

GN2276: Right-Angle Spirit Level
Type: JV - Material / Finish: ALN



CloseNextPrevious

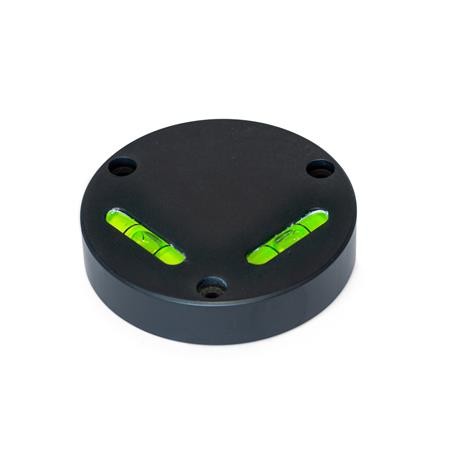

GN2276: Right-Angle Spirit Level
Type: AV - Material / Finish: ALS



CloseNextPrevious

GN2276: Right-Angle Spirit Level
Type: AV - Material / Finish: ALN



CAD Viewer Technical Data

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Sensitivity - 6 Angle minutes, bubble moves by 2mm.

Sensitivity - 50 Angle minutes, bubble moves by 2mm.

Type - AV aligned, installation from front side (not adjustable)

Type - JV adjustable, installation from front side

CAD Viewer Technical Data

Product Description

GN2276 Right-Angle Spirit Level, for Mounting with Screws

These GN 2276 right-angle spirit levels are used to check the horizontal position of jigs, machines, devices, appliances and instruments.

The spirit levels of type AV are aligned in relation to the reference surface so that the bubbles are centred in the middle of the marking lines once the horizontal position of the contact surface is reached.

The spirit levels of type JV are aligned using the fastening holes that are offset by 120°. An alignment ball on the bottom serves as a pivot point. With careful tightening, it is possible to achieve an alignment that places the bubbles between the middle marking lines.

Specification

On Request
