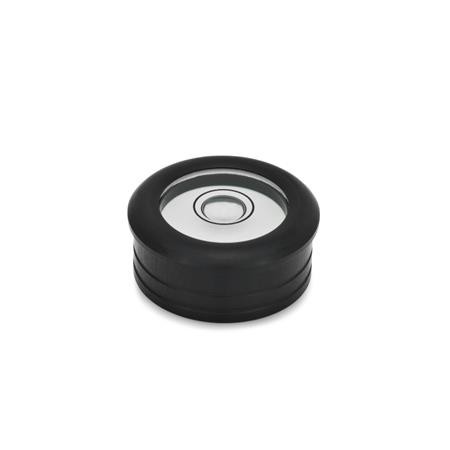

GN2278 Bull's Eye Level For Insertion in Bore Holes, Grooved Housing

images/450/GN2278_Bull_s_Eye_Level_For_Bore_Holes__Grooved_Housing_W.gif

Sensitivity - 30 Angle minutes, bubble moves by 2mm.

Select Values to Buy:

Tech Spec:



GN2278 Bull's Eye Level For Insertion in Bore Holes, Grooved Housing.

Bulls eye levels are used to check the horizontal position of jigs, machines, devices, appliances and instruments.

The spirit levels are aligned in relation to the reference surface so that the bubble is located inside the marking ring when the horizontal position of the contact surface is achieved. The housing is grooved at its lower diameter d3, making it easy to mount in place, for example by gluing.

Specification

Housing - Aluminium. Anodized natural colour ALN. Anodized, black ALS.

Spirit level element - Glass, plastic body.

Filling - colourless K.

Casting compound - mineral-based

RoHS compliant



Select / Deselect Visible Columns
PartCodeFinishd1FillingSensitivityd2d3h1h2MaterialMass

GN2278-ALN-20-K-30ALN20K301218108AL0.004
GN2278-ALS-20-K-30ALS20K301218108AL0.004
GN2278-ALN-25-K-30ALN25K301420129AL0.004
GN2278-ALS-25-K-30ALS25K301420129AL0.004
GN2278-ALN-30-K-30ALN30K3020281310AL0.007
GN2278-ALS-30-K-30ALS30K3020281310AL0.007
#77996.3~77998.2#



On Request:

Filling - green, transparent.

Other sensitivities.

Housing in brass or stainless steel.
