GN726.1 control knobs rotary GN 726.1 726-1 GN726-1 GN 726-1

Standard Parts for Clamping & Operating & Machine Fixtures > Position Indicators, Indexing Mechanisms & Control Knobs > Control Knobs
< Previous Product Next Product >

GN726.1 Control Knob, Aluminium, Collet or Grub Screw

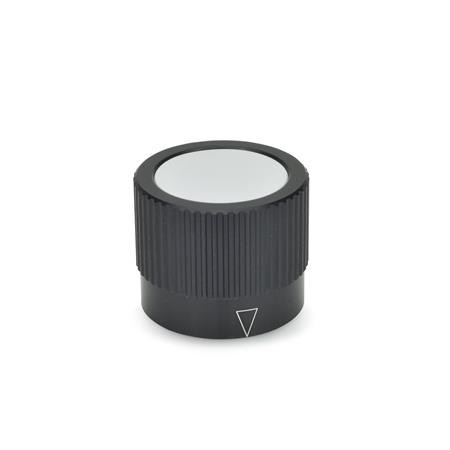

Type A - With arrow.

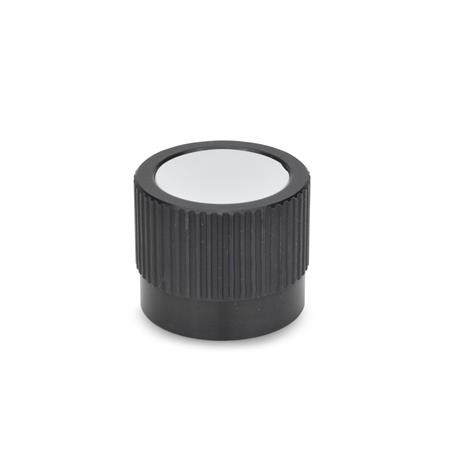

Type B - Neutral, without indicator marking or scale.

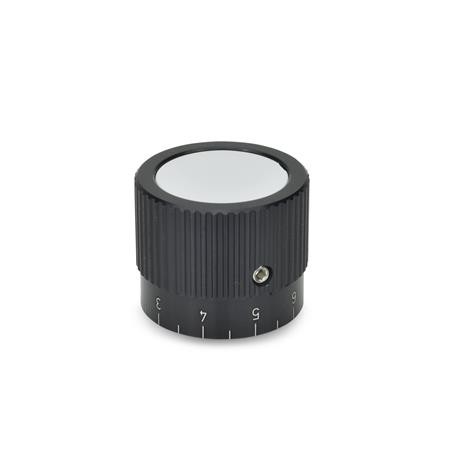

Type S - With scale, 0 - 9, 20 graduations.

Identification number 1 - With grub screw

Identification number 2 - With collet

Select Values to Buy:

Tech Spec:



GN 726.1 Control Knobs

These control knobs are an accurate means of making fine, precise position adjustments. The light grey cover shrouds the fixing components as well as the shaft end. The cover also lends itself for a logo or other symbols.

The collet version permits a simple adjustment of the types with scale or arrow.

The scale and the arrow on the control knobs are indelibly marked and easily legible.

They can be supplied blank, with a standard scale or with custom graduation markings, of various designs.

See further details on Custom Graduations for designs and prices.

Please note: An additional surcharge applies for custom graduation. If this is not chosen on the original order, this will be invoiced separately.

Specification

Aluminium, anodized, black.

Scale (Type S) and arrow (Type A) - white, engraved with laser precision.

Cover - Plastic, light grey.

Collet/hexagon nut - Brass.

Stainless Steel Grub screw (DIN916) - with internal hexagon and serrated point.

RoHS compliant

Select / Deselect Visible Columns
PartCoded1d2/d3TypeId No.d4d5d6d7h1h2h3h4ltMass

GN726.1-22-B5-A-122B5A11614M42022164.3812.5~0.017
GN726.1-22-B5-B-122B5B11614M42022164.3812.5~0.026
GN726.1-22-B5-S-122B5S11614M42022164.3812.5~0.019
GN726.1-27-Z6-A-227Z6A22018M42526204.3914140.037
GN726.1-27-Z6-B-227Z6B22018M42526204.3914140.037
GN726.1-27-Z6-S-227Z6S22018M42526204.3914140.037
GN726.1-27-B6-A-127B6A12018M42526204.3914140.032
GN726.1-27-B6-B-127B6B12018M42526204.3914140.038
GN726.1-27-B6-S-127B6S12018M42526204.3914140.04
GN726.1-34-Z8-A-234Z8A22523M53230244.21015170.065
GN726.1-34-Z8-B-234Z8B22523M53230244.21015170.065
GN726.1-34-Z8-S-234Z8S22523M53230244.21015170.065
GN726.1-34-B6-A-134B6A12523M53230244.21015170.059
GN726.1-34-B6-B-134B6B12523M53230244.21015170.059
GN726.1-34-B6-S-134B6S12523M53230244.21015170.059
GN726.1-34-B8-A-134B8A12523M53230244.21015170.058
GN726.1-34-B8-B-134B8B12523M53230244.21015170.058
GN726.1-34-B8-S-134B8S12523M53230244.21015170.058
GN726.1-42-Z10-A-242Z10A23230M540342841116200.112
GN726.1-42-Z10-B-242Z10B23230M540342841116200.112
GN726.1-42-Z10-S-242Z10S23230M540342841116200.112
GN726.1-42-B8-A-142B8A13230M540342841116200.102
GN726.1-42-B8-B-142B8B13230M540342841116200.102
GN726.1-42-B8-S-142B8S13230M540342841116200.102
GN726.1-42-B10-A-142B10A13230M540342841116200.103
GN726.1-42-B10-B-142B10B13230M540342841116200.103
GN726.1-42-B10-S-142B10S13230M540342841116200.103
