GN726 Control Knobs Aluminium Collet Grub Screw cost effective

Standard Parts for Clamping & Operating & Machine Fixtures > Position Indicators, Indexing Mechanisms & Control Knobs > Control Knobs
< Previous Product Next Product >

GN726 Control Knob, Aluminium, with Collet or Grub Screw

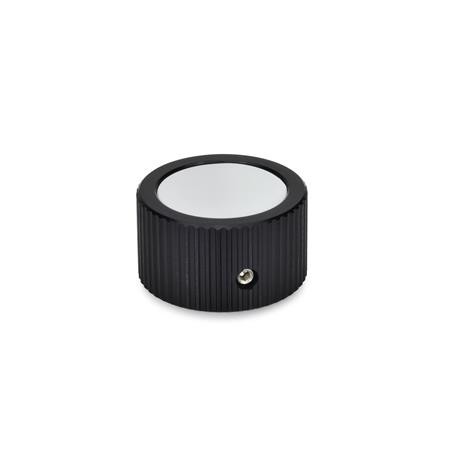

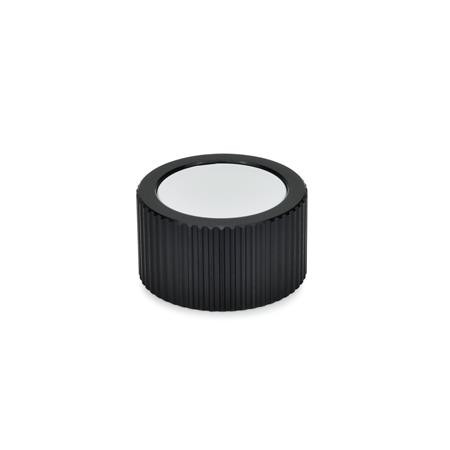

Type N - Plain cover.

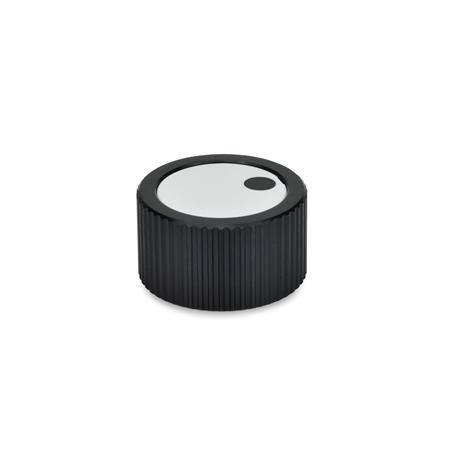

Type M - Cover with indicator point.

Identification No. 1 - with grub screw.

Identification No. 2 - with collet.

Select Values to Buy:

Tech Spec:



GN726 Control Knob, Aluminium, with Collet or Grub Screw.

These control knobs are an accurate means of making fine, precise position adjustments. The light grey cover is attractive and at the same time it covers the hub. The cover also lends itself for a logo or other symbols. Cost effective and long lasting.

The cover is held in place by firmly pushing it into the recess. It can be removed by inserting a screw driver into the slot provided.

The collet provides a simple way of positioning and locking the control knob to the shaft.

Manufacturing these control knobs from an aluminum extrusion allows specials to be made in existing diameters at relatively low cost.

Specification

Aluminium - anodized, black.

Hub cover - Plastic, light grey.

Collet / hexagon nut - Brass.

RoHS compliant

Select / Deselect Visible Columns
PartCoded1d2d3TypeIdentification No.d4d5d6h1h2h3ltMaterialMass

GN726-22-B5-N-122B5~N11614M41594.35~AL0.011
GN726-22-B5-M-122B5~M11614M41594.35~AL0.011
GN726-27-Z6-N-227~Z6N22018M417114.35.514AL0.023
GN726-27-Z6-M-227~Z6M22018M417114.35.514AL0.028
GN726-27-B6-N-127B6~N12018M417114.35.514AL0.021
GN726-27-B6-M-127B6~M12018M417114.35.514AL0.021
GN726-34-Z8-N-234~Z8N22523M520144.2717AL0.042
GN726-34-Z8-M-234~Z8M22523M520144.2717AL0.042
GN726-34-B6-N-134B6~N12523M520144.2717AL0.039
GN726-34-B6-M-134B6~M12523M520144.2717AL0.039
GN726-34-B8-N-134B8~N12523M520144.2717AL0.038
GN726-34-B8-M-134B8~M12523M520144.2717AL0.04
GN726-42-Z10-N-242~Z10N23230M5231748.520AL0.073
GN726-42-Z10-M-242~Z10M23230M5231748.520AL0.073
GN726-42-B8-N-142B8~N13230M5231748.520AL0.069
GN726-42-B8-M-142B8~M13230M5231748.520AL0.069
GN726-42-B10-N-142B10~N13230M5231748.520AL0.067
GN726-42-B10-M-142B10~M13230M5231748.520AL0.067
GN726-42-B12-N-10.06
