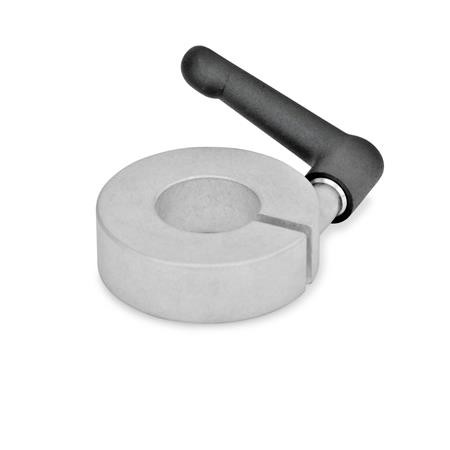

GN706.4 Semi Split Set, with Adjustable Hand Lever, Steel or Aluminium



Select Values to Buy:

Tech Spec:



GN 706.4 Semi Split Set, with Adjustable Hand Lever, Steel or Aluminium

These semi-split set collars or shaft collars GN706.4, can be easily and safely clamped and have a high clamping force without damaging the surface of the shaft. They can be fully adjusted and repositioned on the shaft and are ideal for applications which need frequent repositioning. They not only serve as an end stop, and hold bearings and sprockets on shafts, they can also be used for fixing or triggering other components such as end limit switches. A versatile component, they can also be used for locating purposes. They are tightened with an adjustable hand lever, for ease of use.

For size d1 = 30 and 36 d3 is a through hole; starting from d1 = 42 d3 is a threaded blind bore.

Specification

Steel ST - Sintered Steel (Distaloy AB), black oxidised with vapor.

Aluminium AL - ground.

Ajustable hand levers - Zinc die casting, plastic coated, black RAL 9005, textured finish.

Screw insert and retaining screw - Stainless Steel AISI 303

RoHS compliant

Select / Deselect Visible Columns
PartCoded1d2Materialbd3d4l1l2sMass

GN706.4-32-B14-ST32B14ST11M41337302.10.07
GN706.4-32-B14-AL32B14AL11M41337302.10.1
GN706.4-36-B15-ST36B15ST13M51338.5302.10.112
GN706.4-36-B15-AL36B15AL13M51338.5302.10.063
GN706.4-36-B16-ST36B16ST13M51338.5302.10.1
GN706.4-36-B16-AL36B16AL13M51338.5302.10.02
GN706.4-42-B18-ST42B18ST15M513413030.12
GN706.4-42-B18-AL42B18AL15M513413030.08
GN706.4-42-B20-ST42B20ST15M513413030.145
GN706.4-42-B20-AL42B20AL15M513413030.06
GN706.4-48-B22-ST48B22ST15M513434530.18
GN706.4-48-B22-AL48B22AL15M513434530.098
GN706.4-48-B25-ST48B25ST15M513434530.167
GN706.4-48-B25-AL48B25AL15M513434530.1
GN706.4-55-B28-ST55B28ST15M613454530.2
GN706.4-55-B28-AL55B28AL15M613454530.116
GN706.4-55-B30-ST55B30ST15M613454530.2
GN706.4-55-B30-AL55B30AL15M613454530.1
GN706.4-60-B32-ST60B32ST15M61346.54540.24
GN706.4-60-B32-AL60B32AL15M61346.54540.127
GN706.4-60-B35-ST60B35ST15M61346.54540.22
GN706.4-60-B35-AL60B35AL15M61346.54540.12
GN706.4-65-B40-ST65B40ST15M61347.54540.24
GN706.4-65-B40-AL65B40AL15M61347.54540.13
