GN801.3 Sensor Holders, for Toggle Clamps with Horizontal Base, With / Without Sensor, Stainless Steel

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type V - for toggle clamp with vertical tension lever

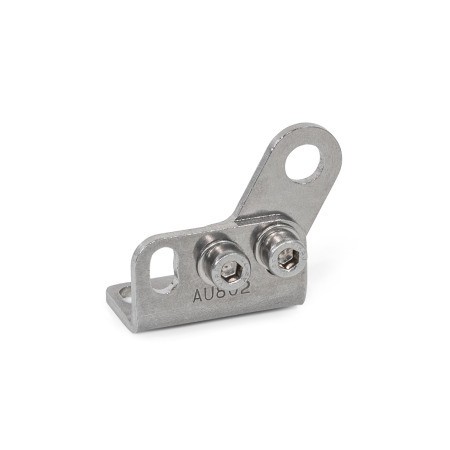

Type H - for toggle clamp with horizontal tension lever

Idenitfication number 1 - with proximity sensor

Identification number 2 - without proximity sensor

Product Description

GN801.3 Sensor Holders, for Toggle Clamps with Horizontal Base, With / Without Sensor, Stainless Steel

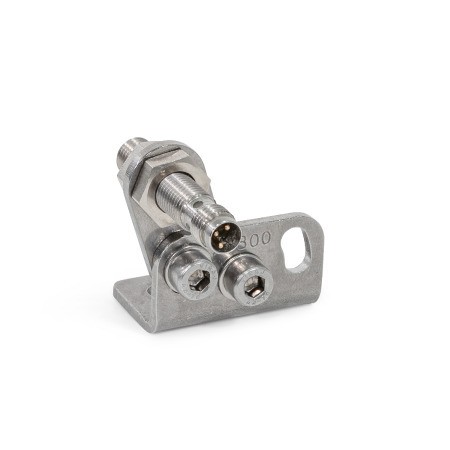

Sensor holders GN 801.3 are designed as accessories for GN810 and GN820 series toggle clamps and enable contactless monitoring of the clamping positions using an inductive sensor.

When the clamping lever is in clamping position, the sensor electronics provide a high signal, e.g. to a machine control unit, and additionally indicate this switch status with an LED on the sensor.

Operating errors can thus be reliably detected and process reliability increased.

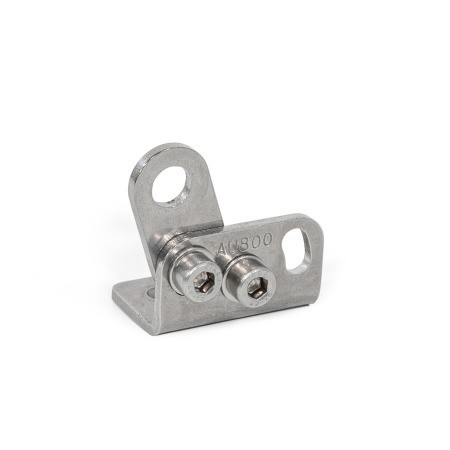

The sensor holder can be retrofitted to toggle clamps and mounted on the right or left, depending on the installation situation of the toggle clamp. All parts are supplied unmounted as a set. The proximity sensor is not included in identification no. 2.

Specification

• Retaining bracket / retaining plate - stainless steel AISI 304
• Setting nuts - stanless steel AISI 304
• Socket cap screws / washers / nuts - stainless steel
• Proximity sensor for identification number 1
  • Housing, stainless steel AISI 304
  • Inductive, 3 pole, PNP contact
  • Thread M8 x 1
  • Operating temperature -25º C to +80º C

Accessory
Cables with connector coupling GN330 (3 pole, 2 or 5 metres long)
