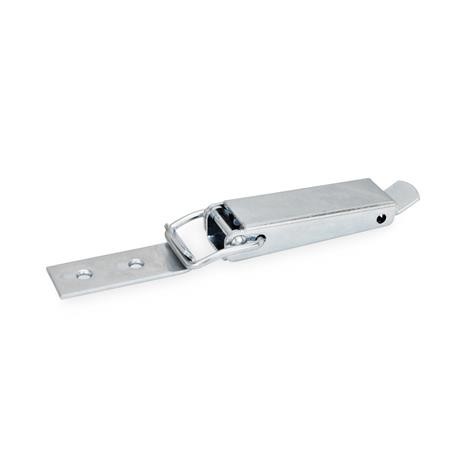

GN832 Hook Clamp, Steel, or Stainless Steel, Optional Safety Pin

Select Values to Buy:

Tech Spec:



GN832 Hook Clamp, Steel, or Stainless Steel, Optional Safety Pin

Hook clamps GN832 are used for the secure holding of flaps, container lids, machine coverings and similar applications. The clamping stroke exceeds the dead centre point which makes them vibration proof.

Due to the elasticity of the pulling latch the components to be linked are held in position.

The loads specified in the above table are simply guide line values for a nominal static pulling force which the lock can withstand. Depending on the conditions under which these hook clamps are used such as vibration or shock loads, the pulling force can be adversely affected.

The driling d3 can be fitted with a safety pin to immobilise the closed hook clamps so that they cannot be released inadvertently.

Specification

Steel ST zinc plated, blue passivated

Stainless Steel NI AISI 304

RoHS compliant

Select / Deselect Visible Columns
PartCodeSizeMaterialFH in N
Holding
Capacity
b1b2b3b4b5b6d1d2d3h1h2l1l2l3m1m2m3m4rMass

GN832-55-ST55ST55023171444133023.22.611910260349.512.5512260.03
GN832-55-NI55NI55023171444133023.22.611910260349.512.5512260.03
GN832-150-ST150ST150034232070194334.13.112.51114086381322.5820300.08
GN832-150-NI150NI150034232070194334.13.112.51114086381322.5820300.076
GN832-200-ST200ST200043302690276645.35.3191519111157.51031.51525.5360.188
GN832-200-NI200NI200043302690276645.35.3191519111157.51031.51525.5360.18
