GN851.4 Latch Type Toggle Clamps, for Pulling Action, With Lock Mechanism, Steel / Stainless Steel

Choose your Part

Please select desired options to reveal part number, price and availability

Options

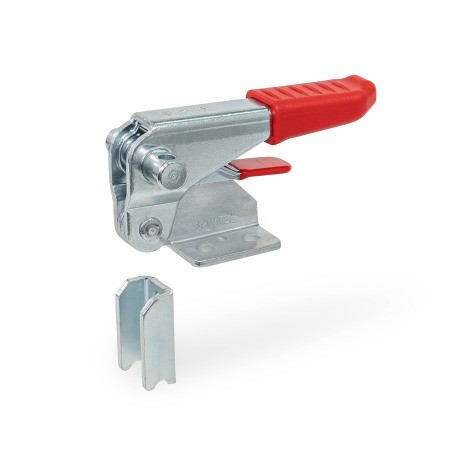

Type T3 - without square U-bolt, with catch.

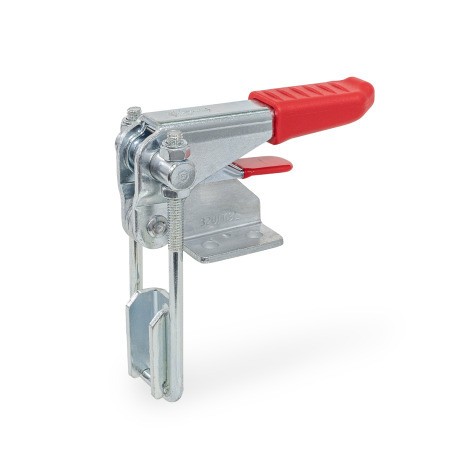

Type T3L - with square U-bolt, with catch.

Product Description

GN851.4 Latch Type Toggle Clamps, for Pulling Action, With Lock Mechanism, Steel / Stainless Steel

Latch type toggle clamps GN 851.4 are securely locked while in the clamped position to prevent loosening by accident or due to vibrations. The lock can be released by one hand operation. The stroke of the square U-bolt can be adjusted within its range.

In the clamped position, the square U-bolt is perpendicular to the clamping arm and to the fixing plane of the latch type toggle clamp.

In addition to the standard lengths for the square U-bolt shown in the table, a variety of other lengths are offered under the GN 951.1 series.

Specification

• Steel ST
  • Sheet metal parts - case hardened steel C10, zinc plated, blue passivated
  • Square U bolts - steel St 37, zinc plated, blue passivated
  • Bearing pins - tempered
  • Bearing rivits - case hardened
  • Moving parts lubricated with special grease

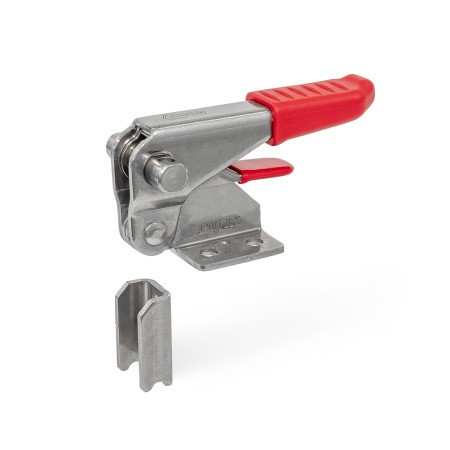

• Stainless steel NI
  • Sheet metal parts, square U bolts AISI 304
  • Bearing pins, bearing rivits AISI 303
  • Moving parts lubricated with special grease
• Handle - Plastic, red, oil resistant

Accessory

Square U bolts GN951.1
