GN146.5 Flanged Connector Clamp, Stainless Steel, 4 Mounting Holes

CAD Viewer Technical Data

Series Selector


Type A - without sealing.

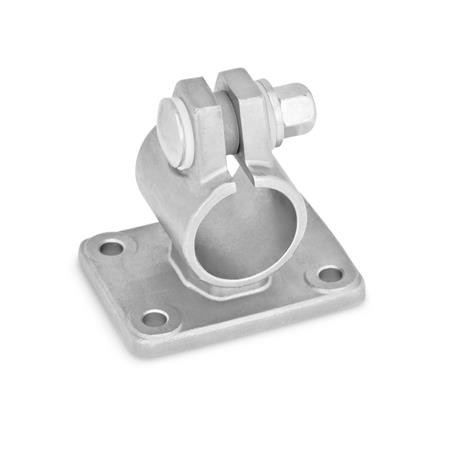

Type B - with sealing.

CAD Viewer Technical Data

Product Description

GN146.5 Flanged Connector Clamp, Stainless Steel, with 4 Mounting Holes

These connector clamps are an essential element when building jigs, fixtures, and operating systems. Being manufactured from stainless steel, they are ideal for use in clean room environments, such as in the food and medical industries.

The clamping bores of GN 146.5 connector clamps are mechanically machined and designed for construction tubings GN990 or DIN 2391, DIN 2395 and DIN 2462 respectively.

The shape of the clamping screws / nuts prevents deterioration due to trapped water. The designs with sealing (Type B) also seals bore holes and threads.


Stainless Steel AISI CF-8, matt shot-blasted.

Clamping bores - mechanically machined.

Carriage bolt DIN603 - stainless steel A2

Cap nuts DIN917 - stainless steel A2


Washers - plastic (Polyacetal POM)

Edge ring - silicon, 40 - 60 Shore A
