GN163.5 Base Plate Connector Clamp, Stainless Steel

CloseNextPrevious
CloseNextPrevious
CAD Viewer Technical Data

Series Selector

Options

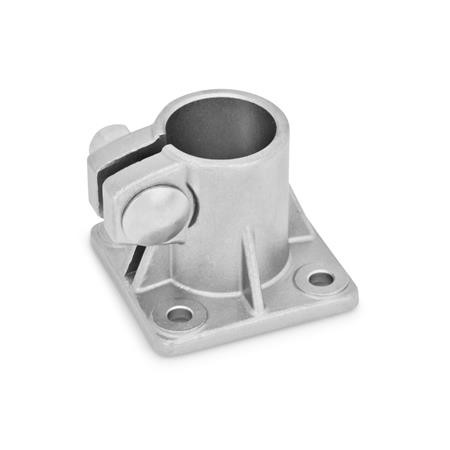

Type A - without sealing.

Type B - with sealing.

CAD Viewer Technical Data

Product details

GN 163.5 Base Plate Connector Clamp, Stainless Steel

These connector clamps are an essential element when building jigs, fixtures, and operating systems. Manufactured from stainless steel, they are ideal for use in clean room environments, such as in the food and medical industries.

The shape of the clamping screws / nuts prevents water ingress or the formation of damp due to dammed up water . The design with a seal (Type B) also seals bore holes and threads.The clamping bores of these base plate connector clamps are mechanically machined and designed for use with construction tubing GN990.

Specification

Stainless Steel AISI CF-8, matt shot-blasted.

Clamping bores - mechanically machined.

Carriage bolt DIN603 - stainless steel A2

Cap nuts DIN917 - stainless steel A2

Sealings

Washers - Plastic (Polyacetal POM)

Edge ring - Silicon, 40 - 60 Shore A
