GN241 Tube Connector Joint, Aluminium, Split Assembly

CloseNextPrevious



CloseNextPrevious

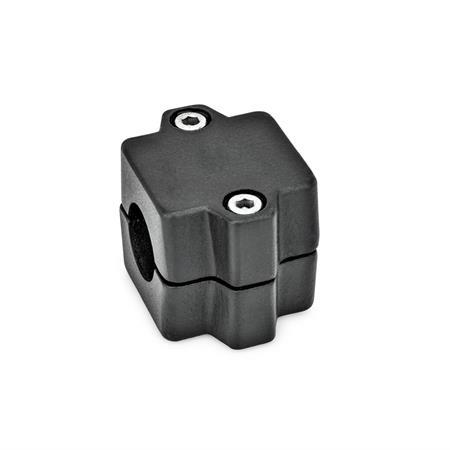

GN241: Tube Connector Joint
Finish: BL - Id. No.: 2



CloseNextPrevious

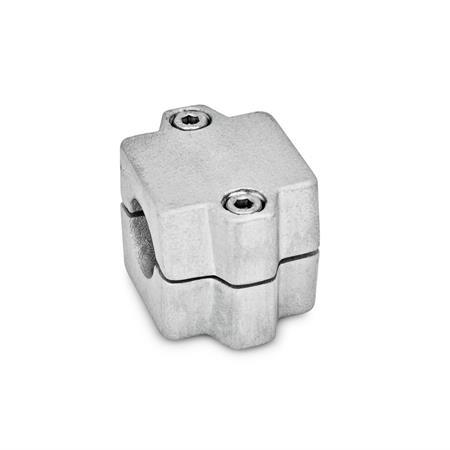

GN241: Tube Connector Joint
Finish: SW - Id. No.: 2



CAD Viewer Technical Data

Series Selector

Options

Identification No. 2 - with 2 clamping screws DIN912, Stainless Steel

Bore d1 - B

Square s - V

CAD Viewer Technical Data

Product Description

GN241 Tube Connector Joint, Aluminium, Split Assembly

The clamping bores of the tube connectors GN 241 are not machined and designed for construction tubings GN990 or DIN2391, DIN2395 and DIN2462 respectively.

Specification

The standard clamping bolts are socket cap screws DIN912. They can be used in place of adjustable clamping levers GN911 (see table of dimensions).

Aluminium AL - Plastic coated, black SW RAL 9005,textured finish. Blank BL matt shot-blasted.

Clamping bores - Not machined.

Socket cap screws DIN912 - Steel ST, zinc plated / Stainless Steel NI, AISI 304

Hexagon nuts DIN985 - Steel ST, zinc plated / Stainless Steel NI, AISI 304

Accessory

Adjustable clamping levers GN911 have to be ordered separately. They are supplied disassembled.
