Catalogue Technical Specification

CAD Data

GN281 3D CAD Model


GN281 Swivel Clamp Connector Joint, Aluminium



GN281: Swivel Clamp Connector Joint
Finish: BL - Blank

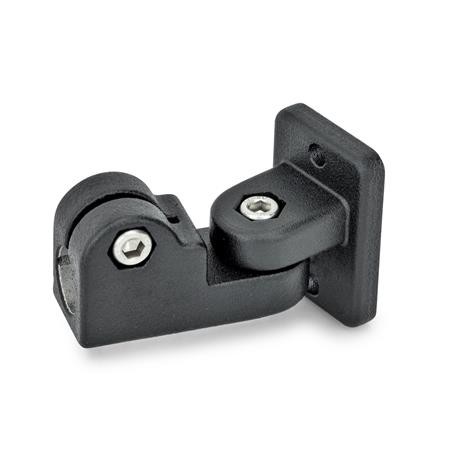

GN281: Swivel Clamp Connector Joint
Finish: SW - Black, Textured Finish

CAD Viewer Technical Data

Series Selector


Idenitcation No. 2 - With one clamping screw DIN 912, stainless steel

CAD Viewer Technical Data

Product Description

GN281 Swivel Clamp Connector Joint, Aluminium

The swivel clamp connector joints GN 281 are an assembly of the swivel clamp connectors GN271 and GN275.

The clamping bore is machined and designed for construction tubings GN990 or DIN2391, DIN2395 and DIN2462 respectively.

The hexagon nuts DIN985 are either zinc plated or in stainless steel to suit the screws.

The clamping nuts (Identification no. 1 - 2) of the connector clamps comprise a screw and a nut and, in the case of the hexagon screw and clamping levers, a spacer tube is added.

Special executions: different surface finish or colours.


Aluminium AL, black plastic coated textured finish SW. Blank, matt shot blasted BL

Clamping bore - Mechanically machined

Socket cap screws DIN912 - Steel ST, zinc plated / Stainless Steel NI, AISI 304

Hexagon nuts DIN985 - Steel ST, zinc plated / Stainless Steel NI, AISI 304

Adjustable clamping levers GN911 - Zinc die casting

Inserts / distance bushings - Stainless Steel NI, AISI 303

On Request

Different surface finish or colours
