GN291.1 Square Linear Actuator, with Right or Left Hand Thread

CloseNextPrevious
CAD Viewer Technical Data

Series Selector

Options

Type R1 - Right hand thread, shaft journal at one end

Type R2* - Right hand thread, shaft journal at both ends

Type L1 - Left hand thread, shaft journal at one end

Type L2* - Left hand thread, shaft journal at both ends

* Available on request

CAD Viewer Technical Data

Product description

GN 291.1 Square Linear Actuator, with Right or Left Hand Thread

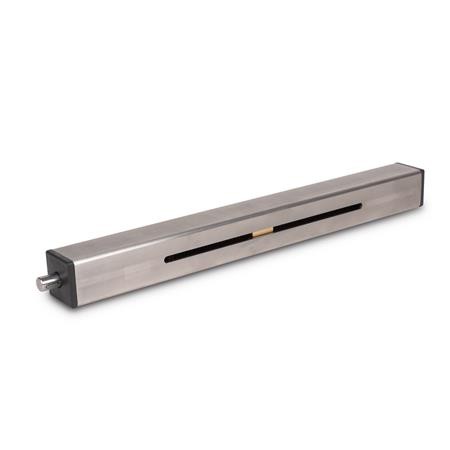

Square linear actuators, GN291.1 are used if the linear actuator connectors are exposed to high torsion forces.

In addition to the standard stroke lengths specified in the table for linear actuators any stroke inside the maximum stroke length is available on request.

Besides the extensive range of two-part tube clamp connectors there are a number of different components for fixing the linear actuators and to build linear actuator connectors.

In order to measure the displacement and positioning of the linear actuator connectors, the square tube can be provided with a longitudinal scale.

Sliders, connector clamps and accessories are to be ordered separately.

Specification

Square tube - Steel, chrome-plated SCR

Spindle with trapezoidal thread, steel, ball bearings.

Lead nut - gun metal

End cap - plastic
