ESH Elastomer Sheets, Chloroprene Rubber, Urelast, Shore 65, 80 & 92



Select Values to Buy:

Tech Spec:



ESH Elastomer Sheets, Chloroprene Rubber, Urelast, Shore 65, 80 & 92

Sheet material is used among other things for deep drawing operations, for bending and forming as well as cutting. it is a basic material for custom made components and prototypes.

These rubber plates are made from top quality chloroprene rubber, are extremely resistant to aging and as such are very cost effective. The material used has a very good resistance to atmospheric and environmental influences.

Supplied in standard sizes, however material can also be supplied in sizes to customers' specific requirements - please contact us for further information

Specification

Chloroprene rubber CR

Resistant to oils & greases, acids, alkalines and some solvents. Not resistant to fuel.

Available in 65 Shore Hardness.

Chloroprene is also known by the trade name Neoprene®.

Heat treated polyurethane elastomer PUR.

Resistant to oils, greases, solvents, and fuel. Not resistant to acids or alkalines.

Available in 80 & 92 Shore A Hardness.

80 Shore A is not available from stock - delivery on request.

Urelast is also known by the tradename Bayflex®.

Select / Deselect Visible Columns
Close
HideThicknessShow
Hidea length mmShow
Hide6 length mmShow
HideTypeShow
HideReferenceShow

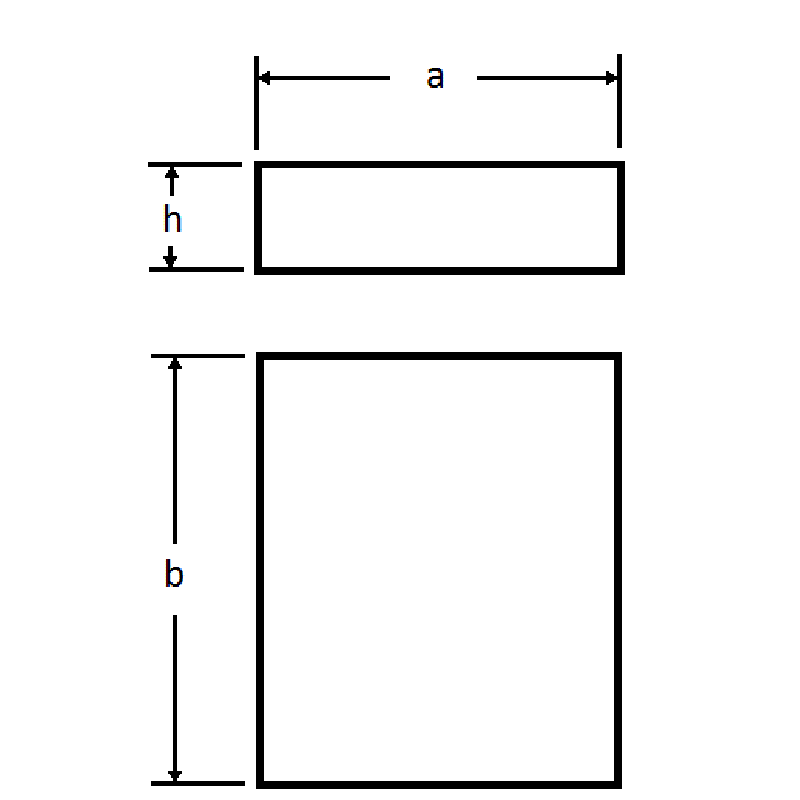

PartCodeThicknessa length mm6 length mmTypeReferenceMass

ESH-3-1000-500-UN8031000500UN80FB781000311.9
ESH-3-1000-500-U9031000500U90FB781000321.9
ESH-4-1000-1000-CR410001000CRFB770000435.5
ESH-5-1000-500-UN8051000500UN80FB781000513.1
ESH-5-1000-500-U9051000500U90FB781000523.1
ESH-6-1000-1000-CR610001000CRFB770000638.2
ESH-8-1000-1000-CR810001000CRFB7700008311
ESH-8-1000-500-UN8081000500UN80FB7810008110.2
ESH-8-1000-500-U9081000500U90FB7810008210.2
ESH-10-1000-1000-CR1010001000CRFB7700010314.6
ESH-10-1000-1000-UN801010001000UN80FB7800010112.8
ESH-10-1000-1000-U901010001000U90FB7800010212.8
ESH-12,5-1000-1000-UN8012.510001000UN80FB7800012115
ESH-12,5-1000-1000-U9012.510001000U90FB7800012215
ESH-15-1000-1000-CR1510001000CRFB7700015320.6
ESH-15-1000-1000-UN801510001000UN80FB7800015118
ESH-15-1000-1000-U901510001000U90FB7800015218
ESH-20-1000-1000-CR2010001000CRFB7700020328.8
ESH-20-1000-1000-UN802010001000UN80FB7800020124
ESH-20-1000-1000-U902010001000U90FB7800020224
ESH-25-1000-1000-CR2510001000CRFB7700025335
ESH-25-1000-1000-UN802510001000UN80FB7800025132
ESH-25-1000-1000-U902510001000U90FB7800025232
ESH-30-1000-1000-CR3010001000CRFB7700030341
ESH-30-1000-1000-UN803010001000UN80FB7800030136.5
ESH-30-1000-1000-U903010001000U90FB7800030236.5
ESH-35-1000-1000-UN803510001000UN80FB7800035145
ESH-35-1000-1000-U903510001000U90FB7800035245
ESH-40-1000-1000-CR4010001000CRFB7700040355
ESH-40-1000-1000-UN804010001000UN80FB7800040150
ESH-40-1000-1000-U904010001000U90FB7800040250
ESH-50-1000-1000-CR5010001000CRFB7700050368.5
ESH-50-1000-1000-UN805010001000UN80FB7800050163.5
ESH-50-1000-1000-U905010001000U90FB7800050263.5
ESH-60-1000-1000-CR6010001000CRFB7700060382
ESH-60-1000-1000-UN806010001000UN80FB7800060176.2
ESH-60-1000-1000-U906010001000U90FB7800060276.2
ESH-70-1000-1000-CR7010001000CRFB7700070396
ESH-75-1000-500-UN80751000500UN80FB780007513.2
ESH-75-1000-500-U90751000500U90FB780007523.2
ESH-20-500-500-CR7.2
