GN22880 Light Duty Castors, Wheel Tread Polyurethane, Wheel Core Polyamide, Double Wheel Version
CloseNextPreviousGN22880 Light Duty Castors, Double Wheel Version
Bearing Type G Bracket Type L Code D
CloseNextPreviousGN22880 Light Duty Castors, Double Wheel Version
Bearing Type G Bracket Type LF Code D
CloseNextPreviousGN22880 Light Duty Castors, Double Wheel Version
Bearing Type G Bracket Type R Code D
CloseNextPreviousGN22880 Light Duty Castors, Double Wheel Version
Bearing Type G Bracket Type RF Code D
CloseNextPreviousGN22880 Light Duty Castors, Double Wheel Version
Bearing Type G Bracket Type G Code D
CloseNextPreviousGN22880 Light Duty Castors, Double Wheel Version
Bearing Type G Bracket Type GF Code D
Choose your Part
Please select desired options to reveal part number, price and availability
Options
Bearing Type G - Friction bearing

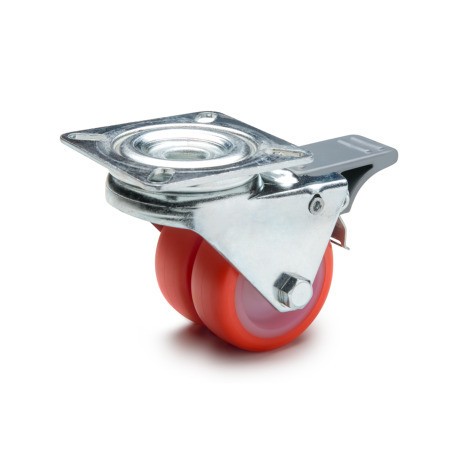

Type L - Swivel bracket with mounting plate
Type LF - Swivel bracket with mounting plate, with total lock brake

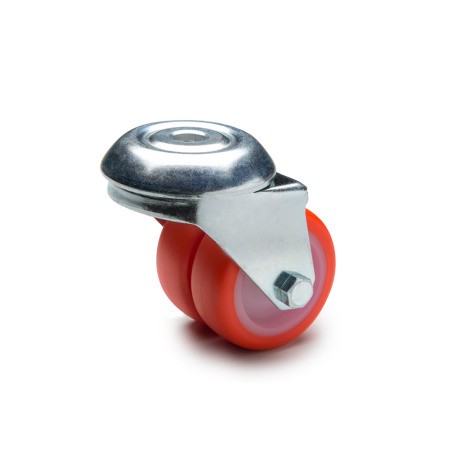

Type R - Swivel bracket with centre hole

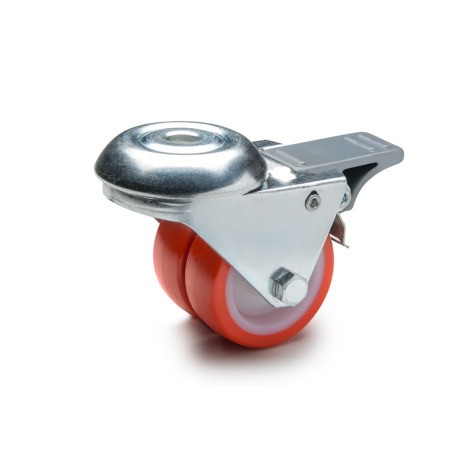

Type RF - Swivel bracket with cerntre hole, with total lock brake

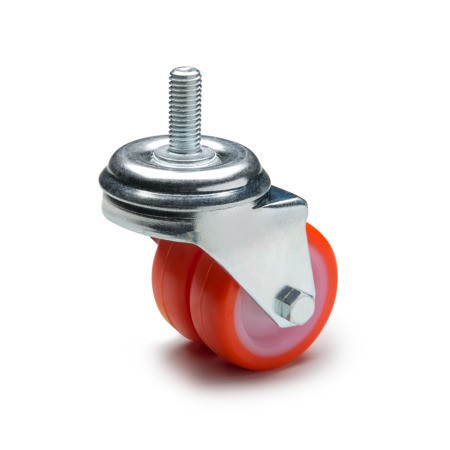

Type G - Swivel bracket with threaded stud

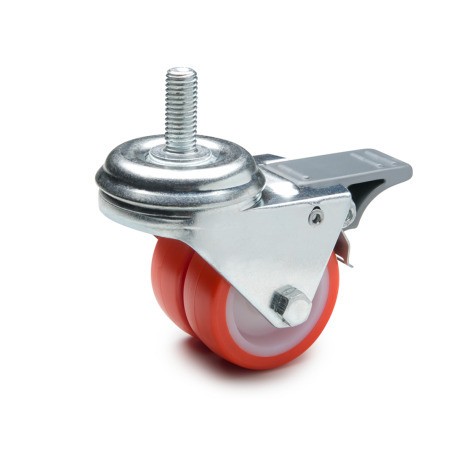

Type GF - Swivel bracket with threaded stud, with total brake lock
Code D - Double wheel version
Product Description
GN22880 Light Duty Castors, Wheel Tread Polyurethane, Wheel Core Polyamide, Double Wheel Version
Light duty casters GN 22880 are used in industrial and public areas for moving heavier materials and equipment, for example.
The wheel tread offers low rolling resistance and high elasticity as well as good wear and tearing resistance. It is good at overcoming obstacles. The double wheel design reduces the contact pressure and thus protects the running surface.
Specification
- Wheel tread - Thermoplastic polyurethane (TPU)
- Injection moulded, red, hardness 55 Shore D
- Wheel core - Plastic, polyamide (PA)
- Bracket - Steel, sheet metal, zinc plated ST
- Swivel head bracket - Dual grease lubricated ball bearing
- Operating temperature -5º C to +40º C
CAD Viewer
Technical Data
