GN22887 Medium Duty Castors, Wheel Tread Polyurethane, Wheel Core Cast Iron, Medium Version
CloseNextPreviousGN22887 Medium Duty Castors, Polyurethane Tread, Cast Iron Core
Bearing Type K, Type B, Material ST
CloseNextPreviousGN22887 Medium Duty Castors, Polyurethane Tread, Cast Iron Core
Bearing Type K, Type L, Material ST
CloseNextPreviousGN22887 Medium Duty Castors, Polyurethane Tread, Cast Iron Core
Bearing Type K, Type LF, Material ST
Choose your Part
Please select desired options to reveal part number, price and availability
Options
Bearing type K - Ball bearing
Type B - Rigid bracket

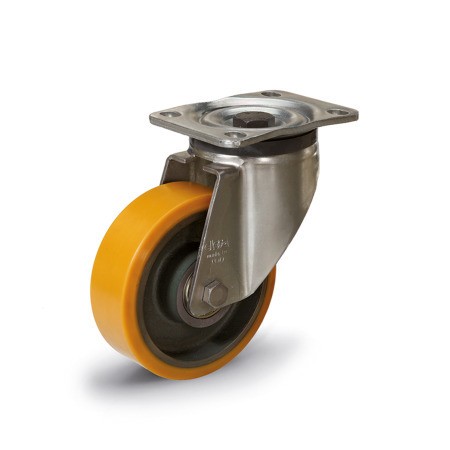

Type L - Swivel bracket with mounting plate

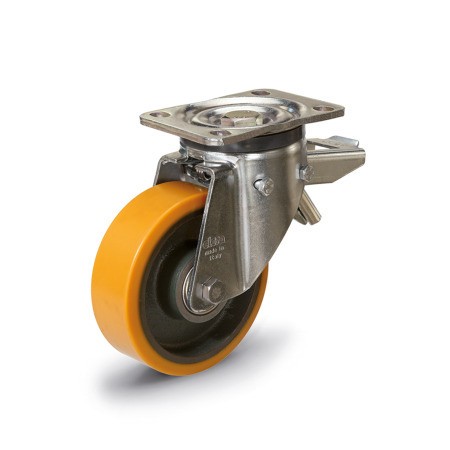

Type LF - Swivel bracket with mounting plate, with total lock brake
Code M - Medium version
Product Description
GN22887 Medium Duty Castors, Wheel Tread Polyurethane, Wheel Core Cast Iron, Medium Version
Medium duty castors GN 22887 are used in industrial and public indoor areas for moving medium weight carts and trolleys, for example.
The wheel tread offers low rolling resistance as well as good wear and tear resistance.
The low wear on the ball bearing increases the service life, and the mounting to the inner ring can be accomplished with zero axial backlash.
Specification
- Wheel tread
- Plastic, polyurethane (PUR)
- Cast, yellow, hardness 92 Shore A
- Wheel core - Cast Iron
- Bracket - steel, sheet metal, zinc plated, yellow passivated ST
- Swivel head bracket - dual grease lubricated ball bearing, Dust protection on type L / LF, plastic, polyethylene
- Operating temperature -20º C to +80º C
CAD Viewer
Technical Data
