GN2422
Rails, for Roller Guide Systems, C Profile, Steel
Please select desired options to reveal part number, price and availability
Options
Type XL - Fixed bearing guide rail with elongated holes
Product Description

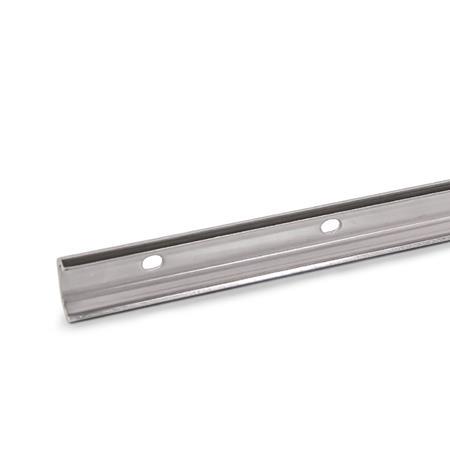

GN2492 Cam Roller Linear Guide Rails for Linear Guide Rail Systems, Stainless Steel
Stainless steel cam roller linear guide rails GN 2492 can be combined with stainless steel cam roller carriages GN2494 or stainless steel cam rollers GN2496 to build linear guide rail systems.
These space-saving units are used for example in the machine and jig building industry, in transportation and building services equipment for supporting sliding doors, or to enable the linear movement of production and plant equipment. The material can also be used in particularly aggressive environments that can be found, for example, in the chemical, pharmaceutical, medical or food processing industries.
Linear guide rail systems are generally installed in pairs, with a horizontal alignment, either vertically (as shown) or perpendicularly. The rails can be installed on either the left or the right side of the application.
Specification
Stainless steel, AISI 316L - Plain
Accessories
Stainless Steel Cam Roller Carriages GN2494
Stainless Steel Cam Rollers GN2496
On Request
Other available guide rail lengths
for h1 = 30: up to 4000mm
for h1 = 45: up to 5200mm
Different mounting hole distance m1 / m2
