GN864.1
Protective Covers, for Power Clamps GN864
Please select desired options to reveal part number, price and availability
Options
Type BL - Clamping arm horizontal
Finish FG - PTFE, green
Finish NC - Nickel plated
Product Description

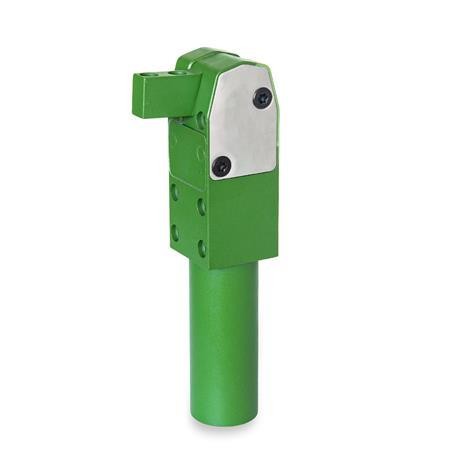

GN864 Pneumatic Power Clamp
The maximum clamping moment of the power clamps GN 864 is reached once the clamping arm is at the end of its stroke. For this reason the working stroke should be completed as closely as possible to the stroke end.
Tye FG is equipped with an anti-stick coating of fluoropolymer (PTFE) for protection against welding spray and corrosion. With protective covers GN864.1, the tensioning mechanism can be additionally protected against penetrating dirt.
Specification
Steel C 45 - anti-stick coating, Fluorpolymer (PTFE), green FG, Chemically nickel plated NC
Max. pressure 10 bar
Accessory
Protective covers GN864.1
