GN932 Ledge Handle, with and without Lock

Choose your Part

Please select desired options to reveal part number, price and availability

Options

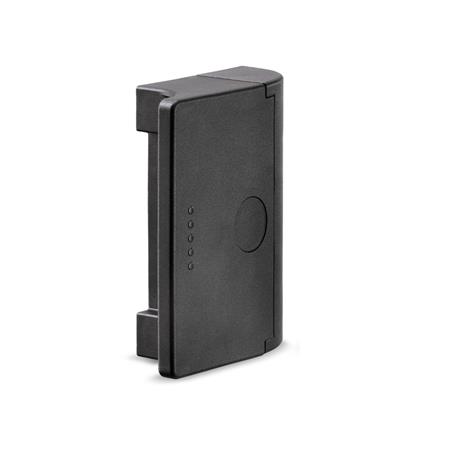

Type S - Not Lockable, only snap-in lock

Type SCE - Lockable (same lock)

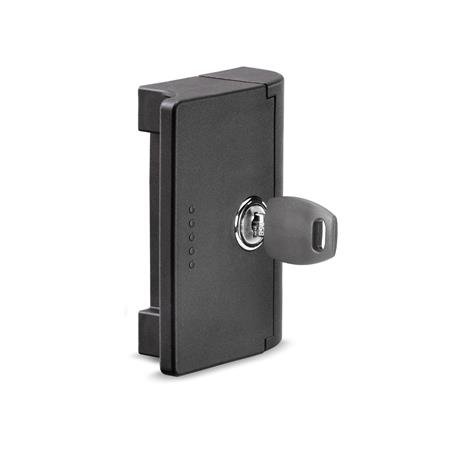

Type SCU - Lockable (different lock)

Product Description

GN932 Ledge Handle, with and without Lock

Ledge handles with lock GN 932 are very easy to mount. Handle and lock (snap-type lock or key-type lock) are integrated in a single element. Also, the handle and therefore the door is side mounted in the locking section.

The key is turned by 180° and may be inserted or pulled off in both end positions.

Two keys are supplied with the designs with lock (Type SCE and Type SCU).

Specification

Plastic technopolymer - Handle part (Polyamide PA), Locking part (Polyacetal POM), Temperature resistant up to 60 °C, black, matte finish

Lock mechanism - Zinc die casting

Key- Brass, nickel plated, with handle in plastic
