GN514 Locking Plunger, with Push Locking Mechanism, Stainless Steel

Choose your Part

Please select desired options to reveal part number, price and availability

Options

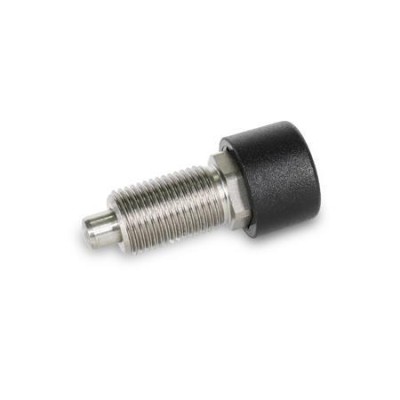

Type A - without lock nut

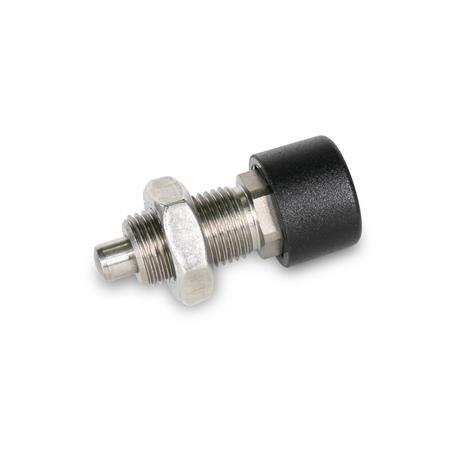

Type AK - with lock nut

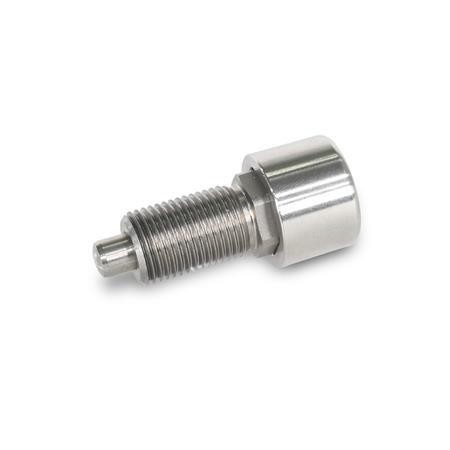

Type AN - Without lock nut, with stainless steel knob

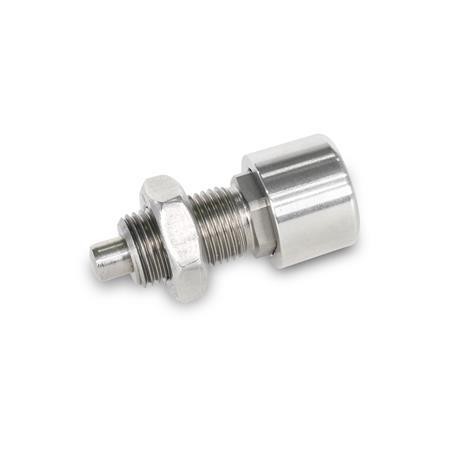

Type AKN - With lock nut, with stainless steel knob

Product Description

GN514 Locking Plunger, with Push Locking Mechanism, Stainless Steel

Locking plungers, GN514, feature a cardioid curve mechanism based on the principle of a retractable pen. They offer a very ergonomic operation that requires only repeated pressing of the knob. Thanks to their functional principle, they are well suited for use in tight conditions and are also easy to protect against improper operation, if necessary.

First the plunger pin is brought into the protruding position by pressing the knob. In this position, the cardioid curve mechanism automatically engages to lock the part. Pressing the knob again unlocks the mechanism since the plunger pin retracts automatically by spring force once the button is released. The plunger pin must not be subjected to any axial forces and must move easily.

The stainless steel design is suitable for applications in highly corrosive environments thanks to the A4 materials used.

Specification

• Stainless steel A4 AISI 316
• Plunger pin - Stainless steel AISI 316, Case-hardened
• Compression spring - Stainless steel AISI 316Ti
• Knob (type A / AK) - Plastic (Polyamide PA), black, matte finish, Not removable
• Knob (type AN / AKN) - Stainless steel AISI 316, not removable
