GN414 Indexing Plungers, Safety Push Button Lock, Stainless Steel

CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CAD Viewer Technical Data

Series Selector

Options

Type A - without lock nut

Type AK - with lock nut

CAD Viewer Technical Data

Product Description

GN414 Indexing Plungers, Safety Push Button Lock, Stainless Steel

These stainless steel indexing plungers, GN 414, with safety lock are used when the inadvertent retraction of the plunger pin is prevented. The protruding plunger is first locked and may be unlocked for pulling only by exerting axial pressure on the red safety push-button.

The safety lock engages in the front end position, i.e. automatically if the indexing pin protrudes, with the locking mechanism housed fully in the operating button and protected from malfunctions. The specified axial load bearing capacity refers to the locking force of the bolt against inadvertent operation which must not be exceeded.

Being made of stainless steel, they are ideal for use in clean room environments, such as those found in the medical and pharmaceutical industries, and also in food industries and the associated processing and packaging.

Specification

Stainless Steel - AISI 303, plunger pin chemically nickel plated

Knob Plastic Technopolymer (Polyamide PA) - black-grey, RAL 7021, matt, temperature resistant up to 80 °C, not removable

Push button - Technopolymer (Polyacetal POM), red, RAL 3000, matt

SELECT HasTableOnOff FROM Series WHERE SeriesID=1788

Quality & Certification
Download our quality certificates & service information documentation

Guaranteed Fast Delivery
Next day delivery on all stock items Fully trackable shipping via UPS

University or DIY Project
Friendly, technical help & advice No minimum charge for small orders

Our Reviews & Feedback
Our customers are important to us Real feedback from real customers

Trade Accounts Welcome
30 day credit accounts available Easy, quick online application form

Key Cloud...

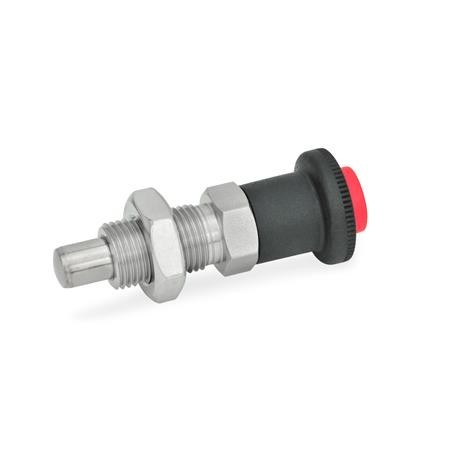

GN414 Stainless Steel Indexing plungers with safety lock and unlocked push-button
