GN412.1 Mounting Block, Zinc Die Casting

CloseNextPrevious



CloseNextPrevious

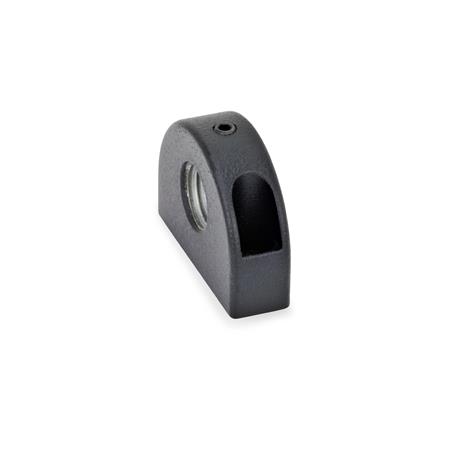

GN412.1: Mounting Block
Id. no.: 1 - Mounting from the Front



CloseNextPrevious

GN412.1: Mounting Block
Id. no.: 2 - Mounting from the Back



CAD Viewer Technical Data

Series Selector

Options

Identification 1 - Mounting from the front

Identification 2 - Mounting from the back

CAD Viewer Technical Data

Product Description

GN412.1 Mounting Block, Zinc Die Casting

These mounting blocks, GN 412.1, broaden the mounting possibilities and are an added feature for the cam action indexing plungers GN612, GN712 and GN712.1.

Positioning bushings are available, GN412.2, to position the indexing pin of an indexing plunger or cam action indexing plunger.

Specification

Zinc Die Casting

Plastic Coated - Black, textured finish.
