GN968 Assembly Set for Profile Systems 30 / 40 / 45

CloseNextPrevious



CloseNextPrevious

GN968: Assembly Set



CAD Viewer Technical Data

Series Selector

Options

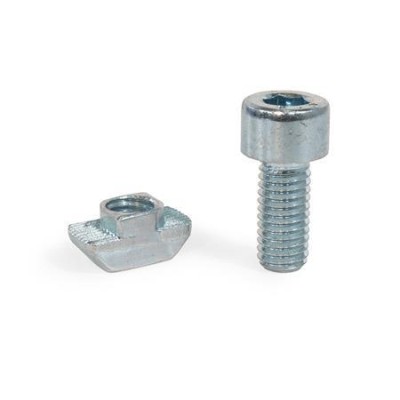

Type A - With cylinder head screw DIN912

Type B - With countersunk screw DIN7991

Type C - With lens screw ISO7380

Type D - With cylinderhead screw DIN7984

CAD Viewer Technical Data

Product Description

GN968 Assembly Sets for Profile Systems 30 / 40 / 45

These assembly sets, GN 968, allow a variety of different standard elements to be easily attached to the most common profile systems. Each set includes one T nut with increased torque, GN505 and one screw.

Specification

T-Nut GN505 - With increased torque (Type MB), Steel ST, zinc plated , blue passivated.

Cylinder head screws DIN912

Counter sunk screws DIN7991

Socket button head screws ISO7380

Cylinder head screws DIN7984

Screws - Zinc plated, blue passivated
