Standard Machine Elements > Indexing Plungers, Locking pins & Spring Plungers > Indexing Plungers
< Previous Product Next Product >

GN816 Locking Plunger, Plunger Protruded





Type A - Operation with knob, without lock nut

Type AK - Operation with knob, with lock nut

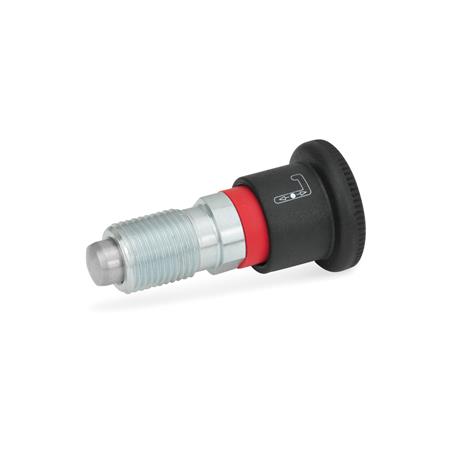

Type AR - Operation with knob, sleeve red, without lock nut

Type ARK - Operation with knob, sleeve red, with lock nut

Type B Operation with key, without lock nut

Type BK Operation with key, with lock nut

Select Values to Buy:

Tech Spec:



GN816 Locking Plunger, Plunger Protruded

If not operated, the plunger of the locking plungers GN816 protrudes. To retract, move against the spring force and hold in the end position by turning by 90°.

The shape of the cam curve secures the plunger against accidental operation.

For the execution with operation with key (Type B / BK) a key is required to move the plunger. In this execution, a cover sleeve provides additional security and safety from unauthorized removal of the locking plunger. The cover sleeve also provides additional protection against malfunction caused by dirt.

Specification

Threaded socket - Steel, zinc plated, blue passivated

Plunger - Stainless Steel, AISI 303

Spring - Stainless Steel, AISI 301

Knob - plastic, Technopolymer(Polyamide PA)black matt finish not removable

Sleeve plastic - Technopolymer(Polyamide PA, black matt finish not removable

RoHS compliant



Select / Deselect Visible Columns
PartCodeMateriald1d2TypeSpring load
in
N end
d3d4d5d6l1l2l3l4l5A/FMass

GN816-6-M12X1,5-AST6M12X1,5A28162817~50820643140.05
GN816-6-M12X1,5-AKST6M12X1,5AK28162817~50820643140.047
GN816-6-M12X1,5-ARST6M12X1,5AR28162817~50820643140.042
GN816-6-M12X1,5-ARKST6M12X1,5ARK28162817~50820643140.19
GN816-6-M12X1,5-BST6M12X1,5B28162817~50820643140.03
GN816-6-M12X1,5-BKST6M12X1,5BK28162817~50820643140.04
GN816-8-M12X1,5-AST8M12X1,5A28162817~50820643140.02
GN816-8-M12X1,5-AKST8M12X1,5AK28162817~50820643140.029
GN816-8-M12X1,5-ARST8M12X1,5AR28162817~50820643140.02
GN816-8-M12X1,5-ARKST8M12X1,5ARK28162817~50820643140.029
GN816-8-M12X1,5-BST8M12X1,5B28162817~50820643140.033
GN816-8-M12X1,5-BKST8M12X1,5BK28162817~50820643140.042
GN816-8-M16X1,5-AST8M16X1,5A3818281720521022648160.06
GN816-8-M16X1,5-AKST8M16X1,5AK3818281720521022648160.08
GN816-8-M16X1,5-ARST8M16X1,5AR3818281720521022648160.05
GN816-8-M16X1,5-ARKST8M16X1,5ARK3818281720521022648160.075
GN816-8-M16X1,5-BST8M16X1,5B3818281720521022648160.05
GN816-8-M16X1,5-BKST8M16X1,5BK3818281720521022648160.07
GN816-10-M16X1,5-AST10M16X1,5A3818281720521022648160.064
GN816-10-M16X1,5-AKST10M16X1,5AK3818281720521022648160.081
GN816-10-M16X1,5-ARST10M16X1,5AR3818281720521022648160.02
GN816-10-M16X1,5-ARKST10M16X1,5ARK3818281720521022648160.02
GN816-10-M16X1,5-BST10M16X1,5B3818281720521022648160.07
GN816-10-M16X1,5-BKST10M16X1,5BK3818281720521022648160.071
