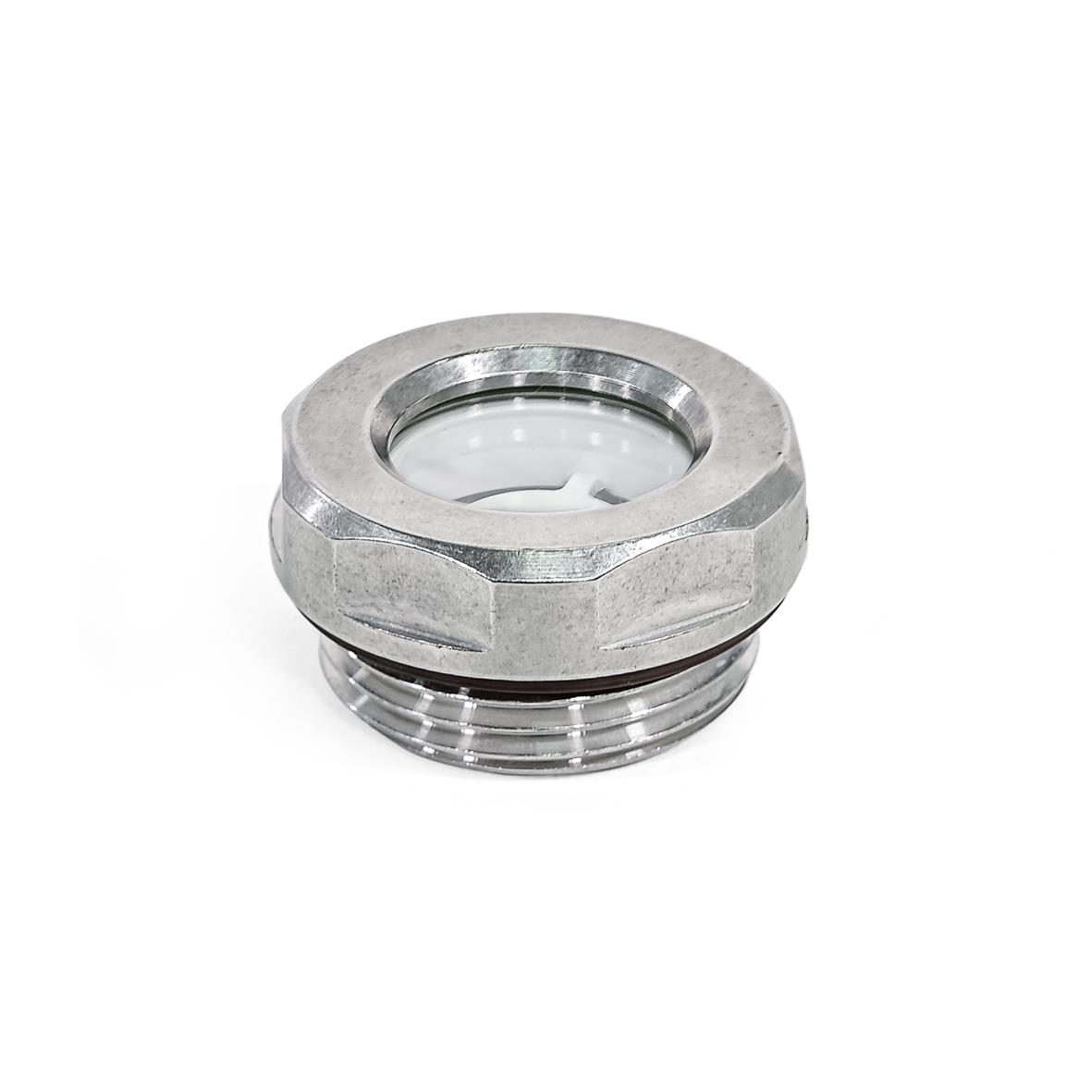

Type AK - with plastic reflector

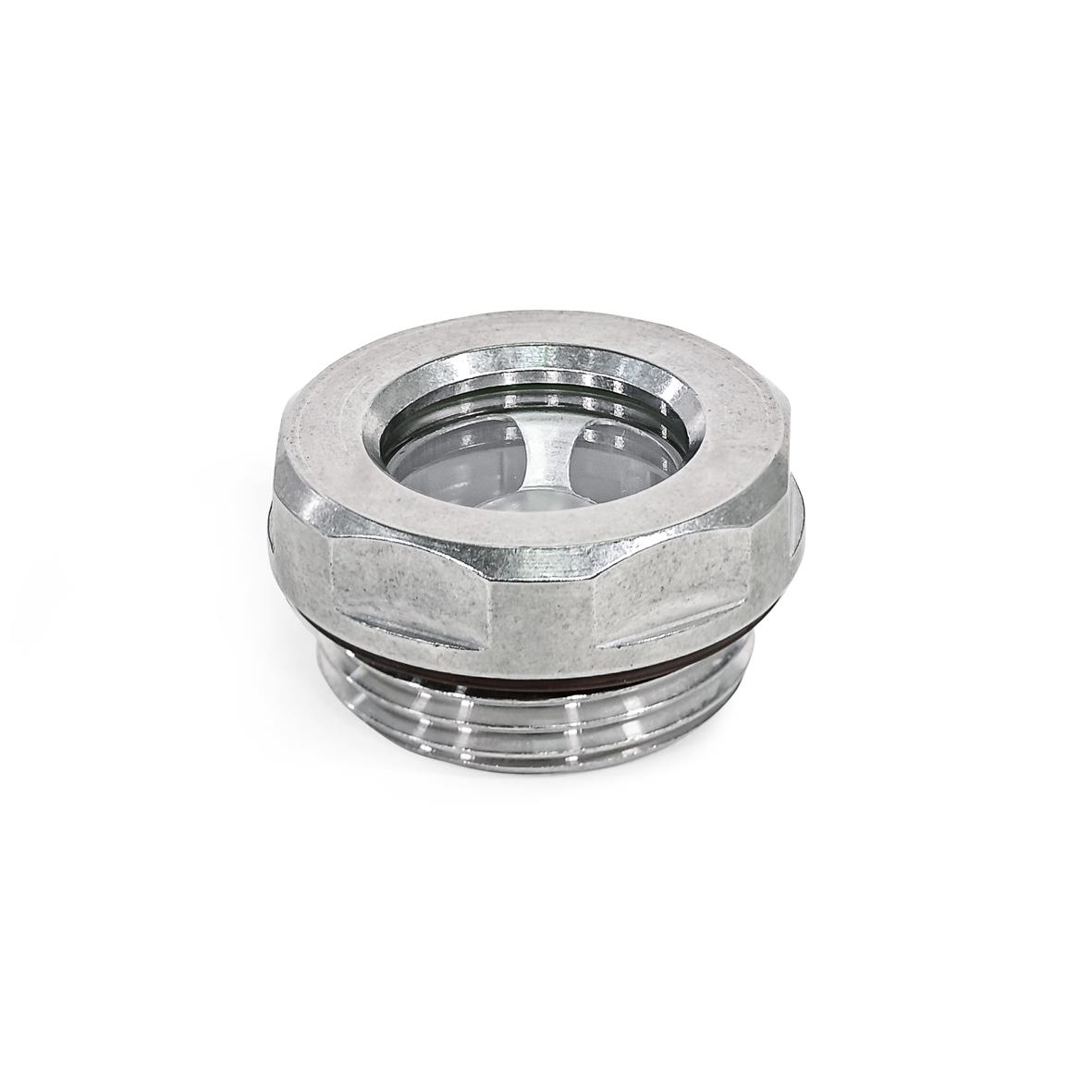

Type AN - with stainless steel reflector

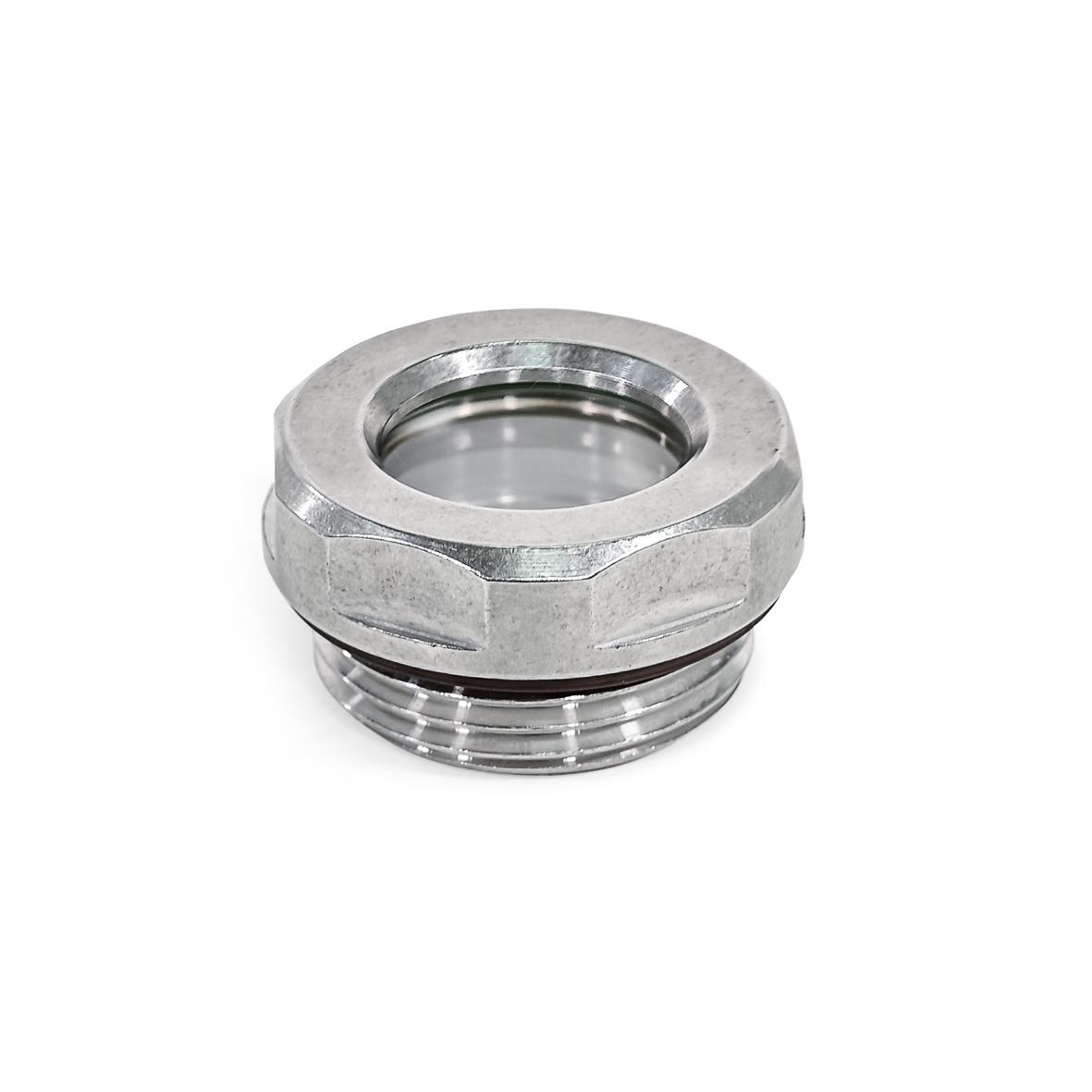

Type B - without reflector
Product Description
GN743.10 Oil Level Sight Glass, Stainless Steel
The robust, scratch proof glass of these stainless steel oil sight glasses GN 743.10 is sealed at the edges by an O-ring. The sealing effect is independent of the axial pressure. The sight glasses can also be used in particularly aggressive environments thanks to the materials used.
The outside diameter of the oil level sight glasses with recessed hex matches the mounting holes for pipe fittings according to DIN 3852.
The outer seal is embedded in a radial recess and this groove prevents the seal from being ejected when the sight glass is tightened.
Stainless steel oil level sight glasses GN743.10 can be used on pressurized tanks. Tests regarding maximum pressure are available.
Assembly Instruction
For mounting on walls of less than 4 mm thickness, please use a mounting nut GN7430
Specification
Body - Stainless steel, AISI 316L
Reflector - Type AK Technopolymer (Polysulfone). Type AN Stainless steel, AISI 316L
Sight Glass - ESG security glass, temperature resistant up to 180 °C.
Snap Ring (type B) - Stainless steel, non rusting 316Ti
Seals - Rubber FPM (Viton®), identification by not black finish of the seal.
Accessory
Fixing nuts GN543.1
On Request
Spare seals and float glasses are available:
EPDM seal
NBR Rubber seal
Sight glass of float glass
