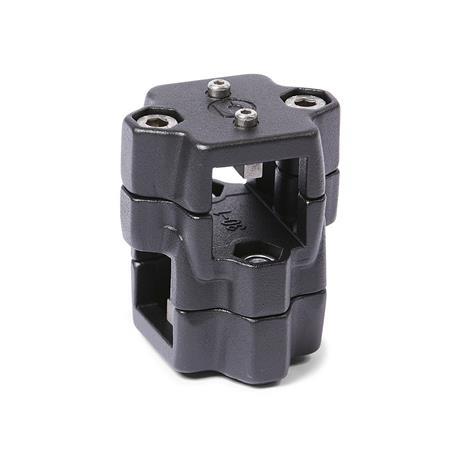

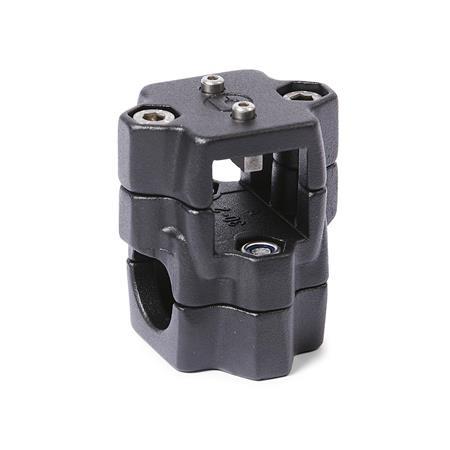

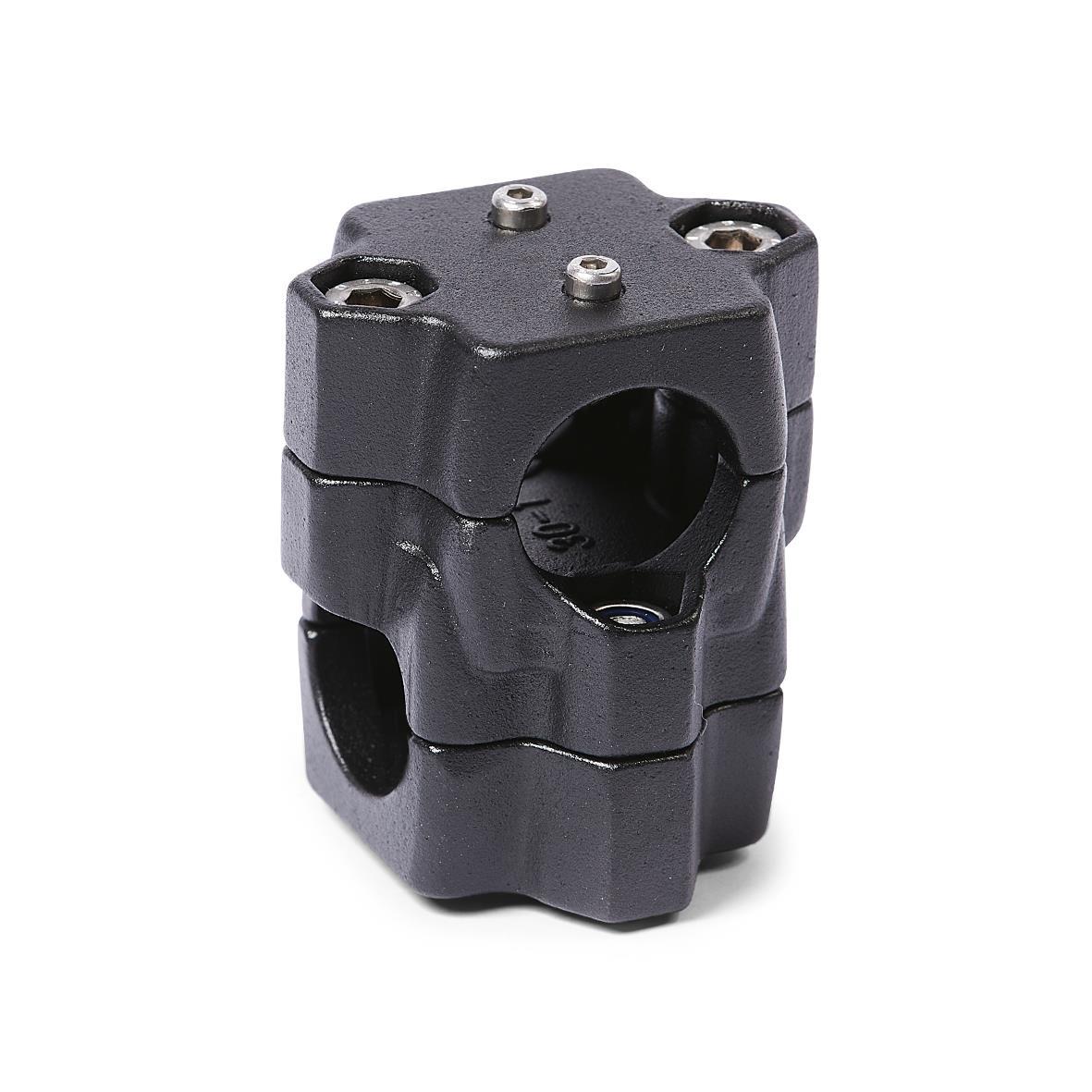

GN134.2 Two-Way Linear Actuator Connectors Aluminium, Multi Part Assembly, for Two-Axis System

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type S - Black, textured finish

Identification No. 2 - with 4 clamping screws DIN 912, stainless steel

Product Description

GN134.2 Two-Way Linear Actuator Connectors Aluminium, Multi Part Assembly, for Two-Axis System

Two-way linear actuator connectors GN 134.2 are based on two-way connector clamps. The additionally provided mounting holes are used to connect to the drive key of a linear actuator.

Centering bushings in the through-hole eliminate the axial clearance. The width of the s1 square is dimensionally aligned with the play of the square linear actuators.

For quick clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911 listed in the table as accessories.

Specification

• Aluminium, powder coated, black S RAL 9005 , textured finish
• Socket cap screws DIN 912, stainless steel AISI 304
• Hex nuts DIN 985, stainless steel AISI 304, Self-locking via polyamide ring
