GN515 Latch, Stainless Steel, with Extended Housing, Operation with Socket Keys

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type DK - Operation with triangular spindle

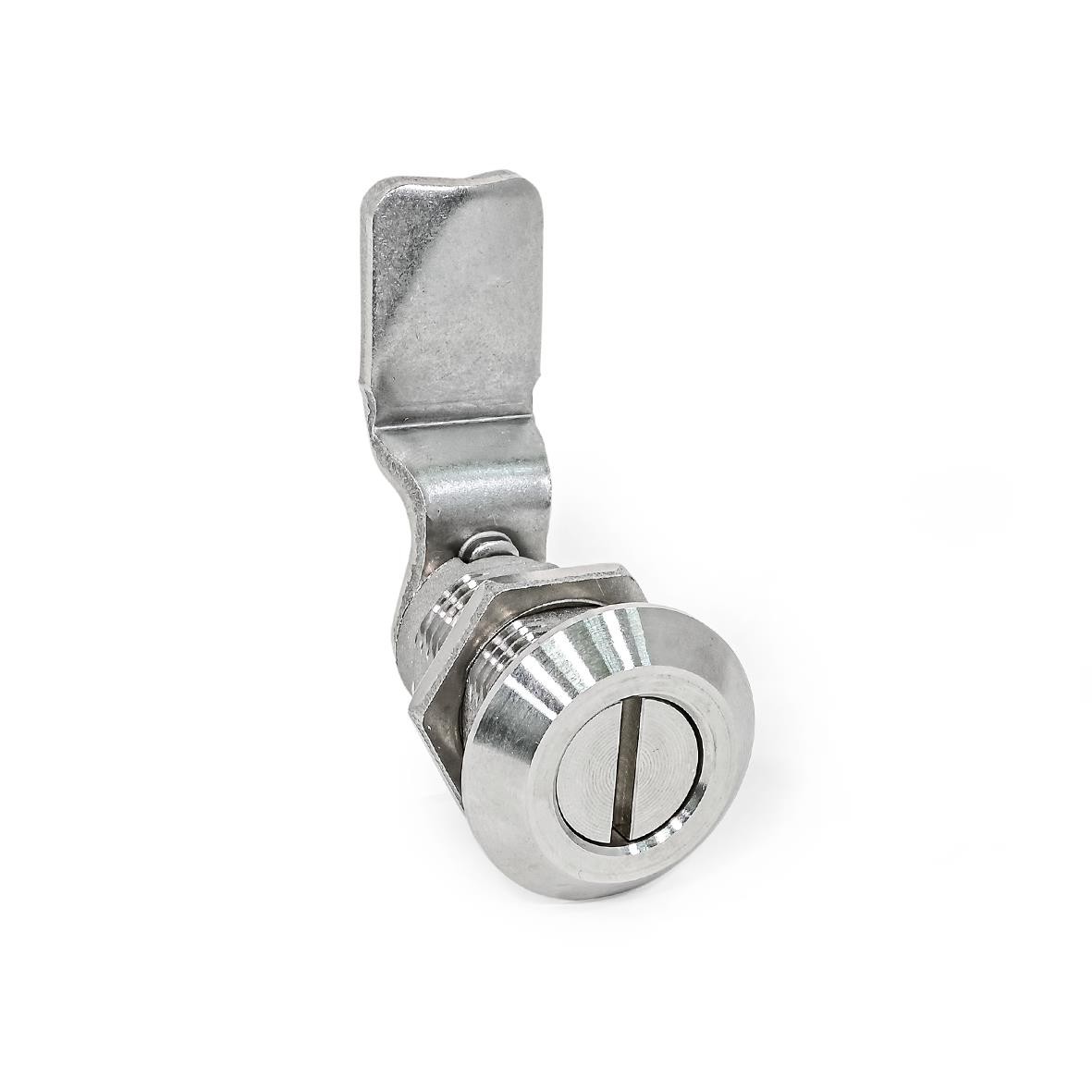

Type SCH - Operation with slot

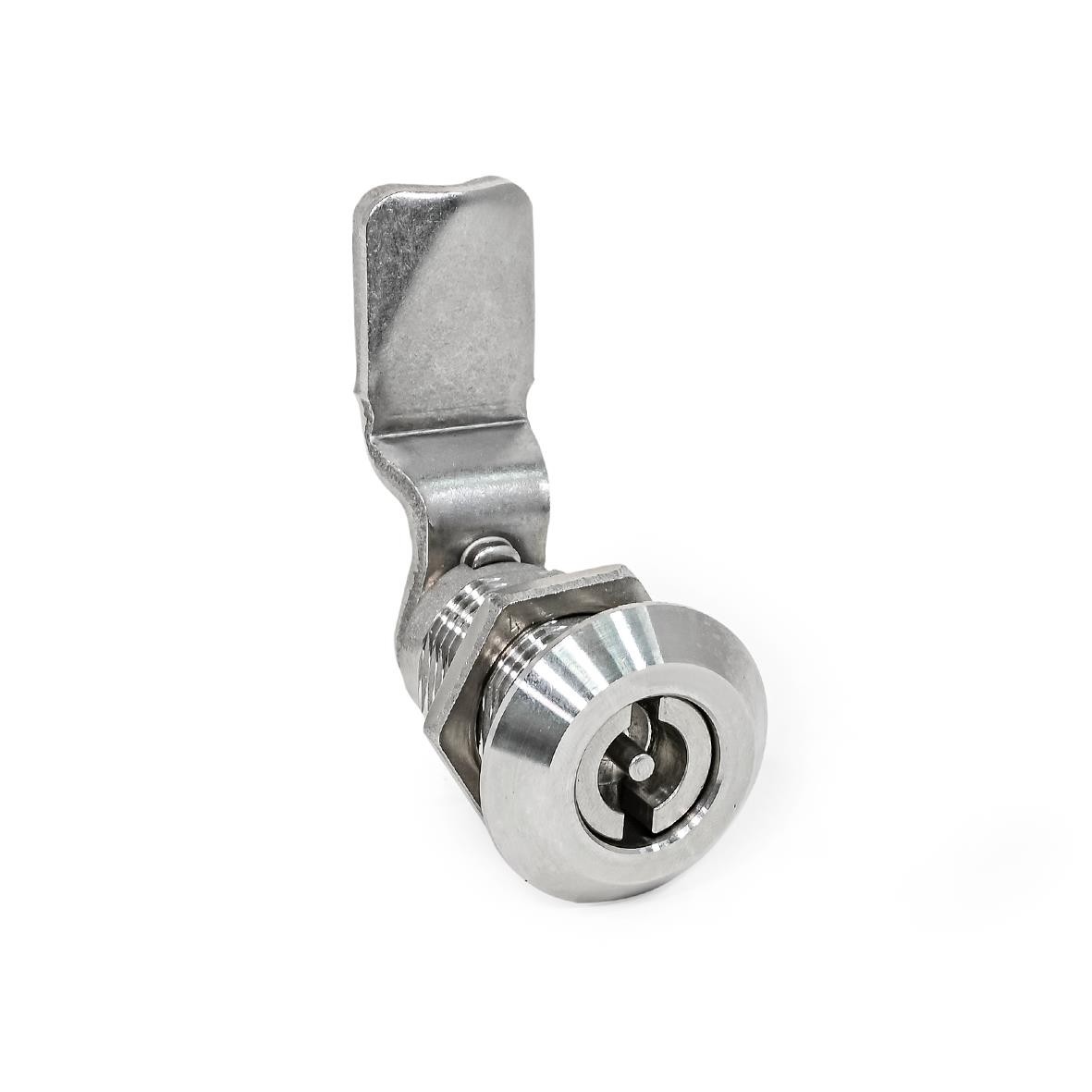

Type VDE - Operation with double bit

Type VK7 - Operation with square spindle A/F 7

Type VK8 - Operation with square spindle A/F 8

Product Description

GN515 Latch, Stainless Steel, with Extended Housing

Stainless steel latches GN 515 are identical to standard latches GN115 except for the extended housing. They are operated with a rotation limited to 90°, which moves the latch arm into the locked position behind the frame. The bevels of the latch arm ease the closing of the door. Thanks to the stainless steel material, the latches are optimally suited for use in corrosive environments.

By installing latch arms with different bend profiles, the latch distance A can be varied from 18 to 82 mm depending on the housing height h₁, while the extended housing is suitable for a door thickness of up to 40 mm.

Stainless steel latches GN515 are supplied with the latch arm loose.

Specification

Lock housing - Stainless steel NI AISI 316 for h₁ = 30 and AISI 303 for h₁ = 50

Latch arm - Stainless steel AISI 304

Other parts - Stainless steel AISI 303

Protection class IP65

Accessories

Socket keys GN119.2

Protective caps gn120

Opening handles GN120.1

Protective guide plates GN 120.2
