Please select desired options to reveal part number, price and availability
Options
Type DK - Operation with triangular spindle

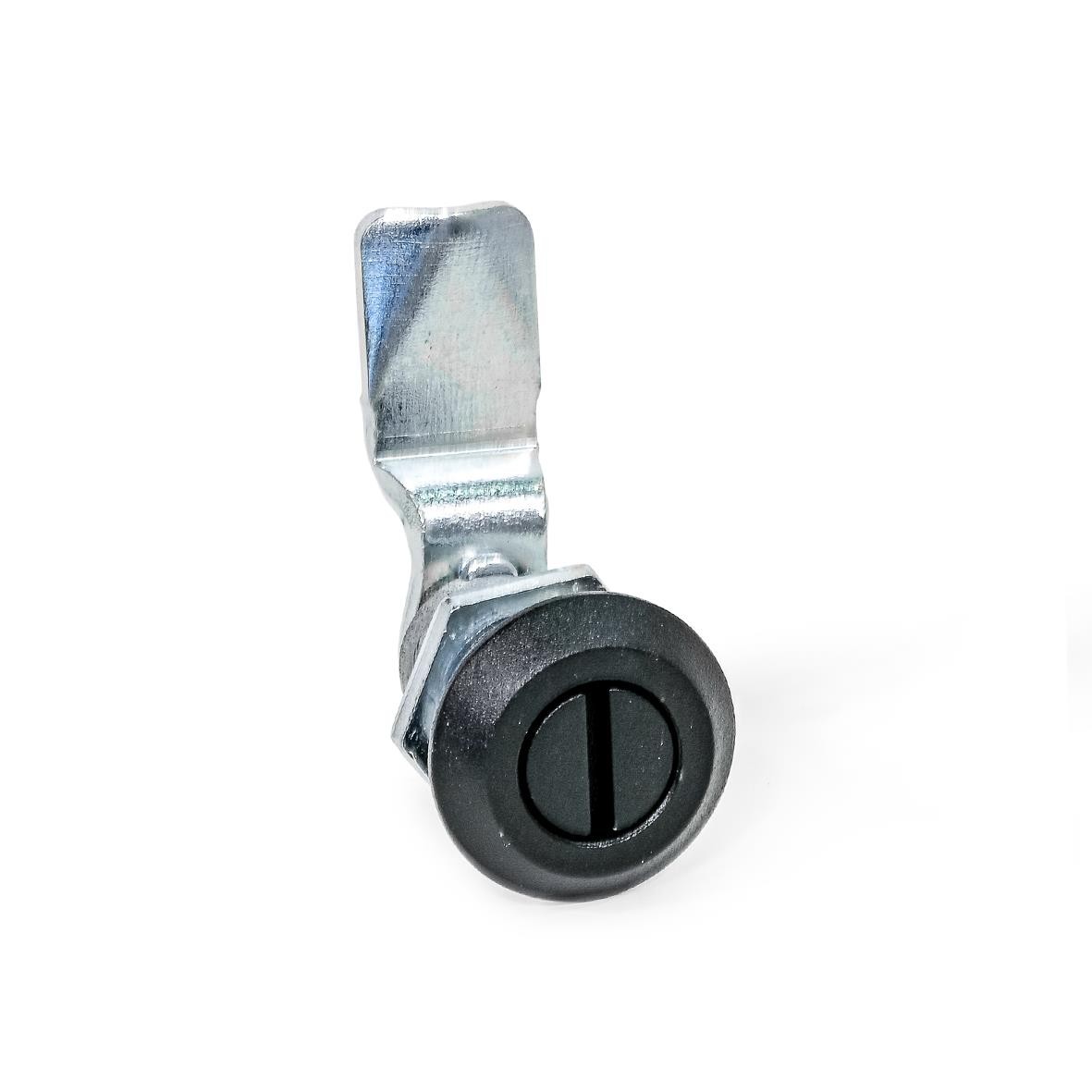

Type SCH - Operation with slot

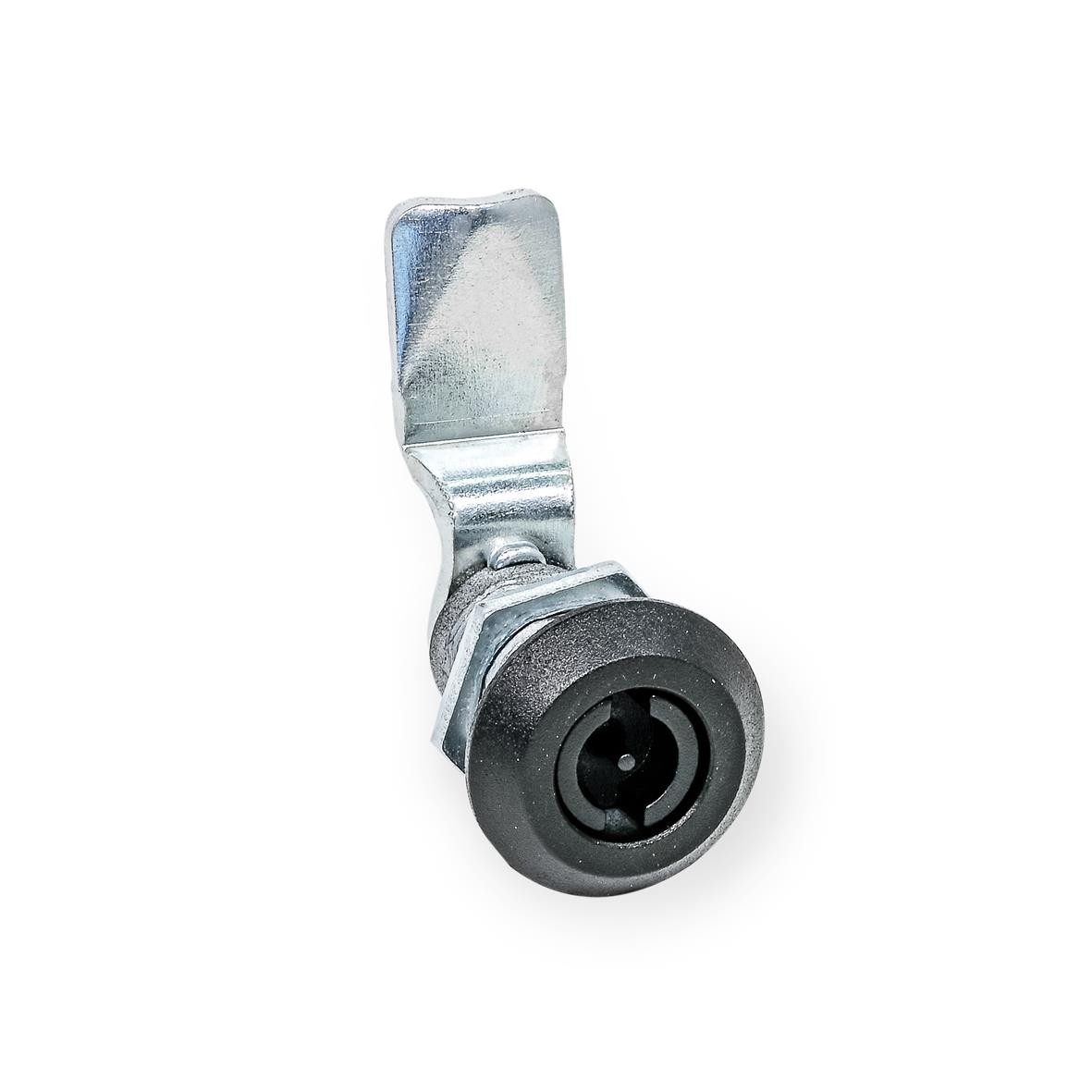

Type VDE - Operation with double bit

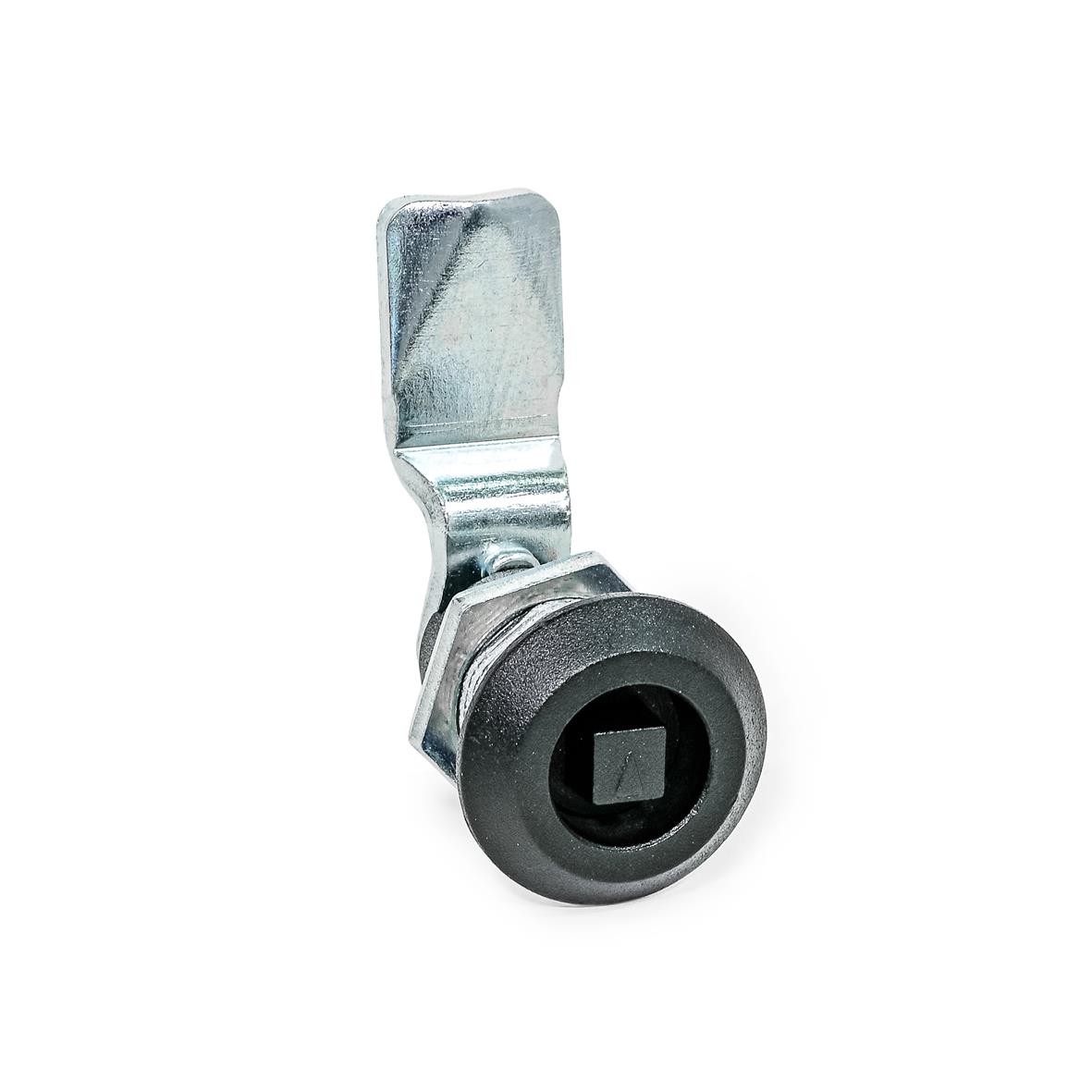

Type VK7 - Operation with square spindle A/F7
Type VK8 - Operation with square spindle A/F8
Product Description
GN515 Latch with Extended Housing, Operation with Socket Keys
Latches GN 515 are identical to standard latches GN115 except for the extended housing. They are used on lockers as well as cupboard doors and hatches. They are operated with a rotation limited to 90°, which moves the latch arm into the locked position behind the frame. The bevels of the latch arm ease the closing of the door.
By installing latch arms with different bend profiles, the latch distance A can be varied from 16 to 92 mm depending on the housing height h1, while the extended housing is suitable for a door thickness s up to 50 mm.
Latches GN515 are supplied with loosely enclosed latch arm.
Specification
Lock housing - Zinc die casting ZD.
Housing collar - powder coated black, RAL 9005, textured finish SW
All other parts - Steel zinc plated, blue passivated
Protection class IP65
Accessory
Socket Keys GN119.2
Opening Handles GN120.1
Protective Guide Plates GN
CAD Viewer
Technical Data
