GN115 Latch, Stainless Steel, Not Lockable

CloseNextPrevious



CloseNextPrevious

GN115: Latch - Form: VK7 -
Operation with Square Spindle A/F7



CloseNextPrevious

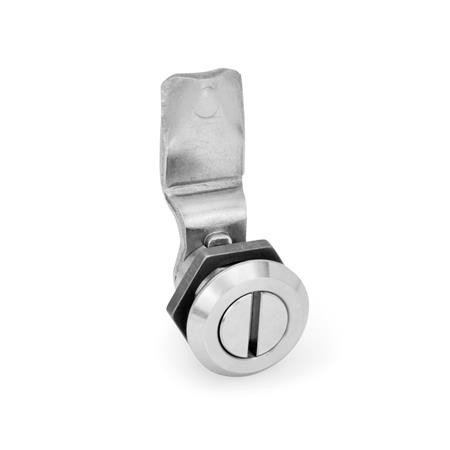

GN115: Latch - Form: SCH -
Operation with Slot



CloseNextPrevious

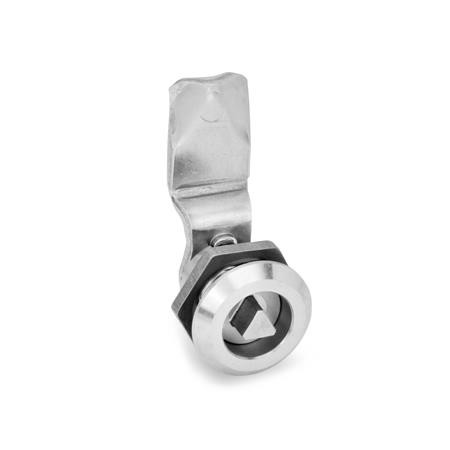

GN115: Latch - Form: DK -
Operation with Triangular Spindle (DK7)



CloseNextPrevious

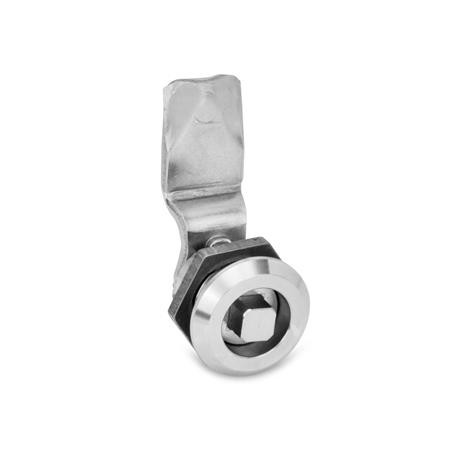

GN115: Latch - Form: VK8 -
Operation with Square Spindle A/F8



CloseNextPrevious

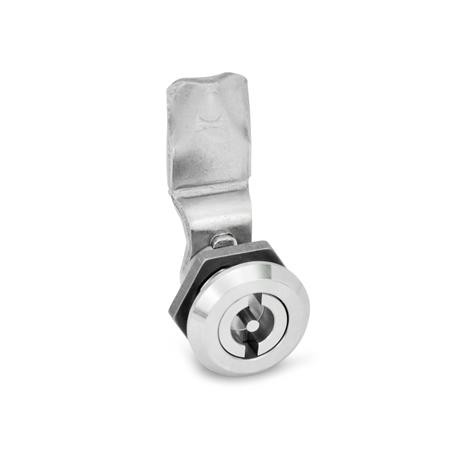

GN115: Latch - Form: VDE -
Operation with Double Bit



CAD Viewer Technical Data

Series Selector

Options

Type DK - Operation with triangular spindle DK7

Type VK7 - Operation with square spindle A/F 7

Type VK8 - Operation with square spindle A/F 8

Type SCH - Operation with slot

Type VDE - Operation with double bit

CAD Viewer Technical Data

Product Description

GN115 Latch Stainless Steel, Not Lockable

Stainless steel latch, GN 115, locks by a turning operation which is limited to 90°. This moves the locking arm behind the door frame. The bevels of the locking ease the closing of the door.

Latches with different cranks cover a range A from 6 to 28 mm.

The operating bolt is fitted with an O-ring for sealing.

The lockings are included loose.

Specification

Lock housing - Stainless Steel NI AISI 303

Latch - Stainless Steel AISI 304

Protection class IP 65

Accessory

Socket Key GN119.2
