3L Nitrogen Punching Units

Press Tool Standard Parts > Die Springs & Gas Springs > Nitrogen Gas Springs
Press Tool Standard Parts > Cam Units > Mechanical Cam Units
< Previous Product Next Product >

3L Nitrogen Punching Unit



 images/300/3L_nitrogen_punching_unit_drawing2_W.jpg       images/300/3L_nitrogen_punching_unit_drawing1_W.jpg



Select Values to Buy:

Tech Spec:


3L Nitrogen Punching Press

By combining the gas spring and punch you remove the need for a standard retainer. Each unit allows easy positioning due to its' compact dimensions and is ideal when combined with a cam unit.

Height and stripping force are adjustable. Suitable for ISO 8020 punches. With an Initial force of up to 2000 daN and a stripping force up to 4000daN.

The short stripper head is recommended for flat piercing. Any moulded contour of the stripper head will cause a lost of working stroke. The long stripper head is recommended for piercing where it is required for a moulded contour of the stripper. The mouldable area of the stripper is 19 mm long and shall be machined by the user.

The maximum working stroke of the stripper head is always 8 mm, whilst the maximum working stroke of the stripper head should always be calculated from the first point of contact of the stripper with the working area of the sheet. The supply of the nitrogen punching unit stripper head always includes the punch guiding shape built-in the stripper, if not otherwise required. A bottom hardened counter plate is included. The stripper head can also be supplied separately from the nitrogen punching unit, being supplied with or without (basic model) punch point guiding shape built in. Note - Geometry size and tolerance of the built-in punch guiding shape is always referred to the nominal punch size, with the radial clearance between the punch and the punch point guiding hole a maximum of 0,1 mm

Nitrogen
Punching Unit
Code
D
ISO
8020
B C CU rCu* A F G H I M N L1 S** F
daN±5%
(25 bar
at 20°C)
F
daN±5%
(50 bar
at 20°C)
F
daN±5%
(75 bar
at 20°C)
F
daN±5%
(100 bar
at 20°C)
Short and Long Stripper mm mm mm mm mm mm mm mm mm mm mm mm mm cm² GR BU RD YW
 3L P01A (GR/BU ...)  10 23  35  2 9(2X)  19  22  42  55  ≥19  5,05 125 255 380 505
 3L P02A (GR/BU ...) 13  29  43  9(2X)  24  27  50  65   ≥19 6,95  175  350  520  695
 3L P03A (GR/BU ...) 16  29  43  9(2X)  24  27  50  65   ≥19  6,95  175  350  520  695
 3L P04A (GR/BU ...) 20  40  58  11(2X) 28  32,5  13  11  64  78   ≥19  11,6  290  580  870  1160
 3L P05A (GR/BU ...) 25  40  58  11(2X)  28  32,5  13  11  64  78   ≥25  11,6  290  580  870  1160
 3L P06A (GR/BU ...) 32  48 67  13(2X)  31  37  14  12  74  85   ≥25  13,85  345  695  1040  1390
 3L P07A (GR/BU ...) 40 60 81  13(2X)  36  42,5  21  19  90  96   ≥25  18,85  470  940  1410  1880

All sizes in mm
*rCu reserve of stroke   **S piston working size

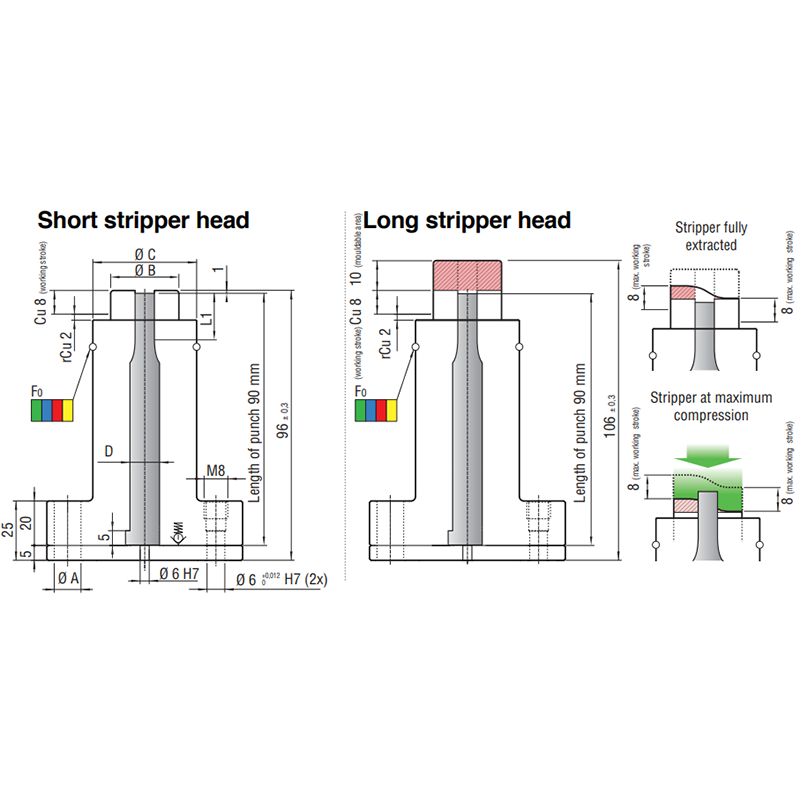

 90 mm shoulder style punch length

Reference to nitrogen
punching unit code

punchShort model stripper head
punch length = 90 mm
Long model stripper head
punch length = 90 mm
mmCodef mmCodef mm
3L PO1A 10 42 S 01 1,5 42 S 02 1,5
3L PO2A 13 42 S 03 3 42 S 04 3
3L PO3A 16 42 S 03 3 42 S 04 3
3L PO4A 20 42 S 07 3 42 S 08 3
3L PO5A 25 42 S 07 3 42 S 08 3
3L PO6A 32 42 S 11 3 42 S 12 3
3L PO7A 40 42 S 13 3 42 S 14 3

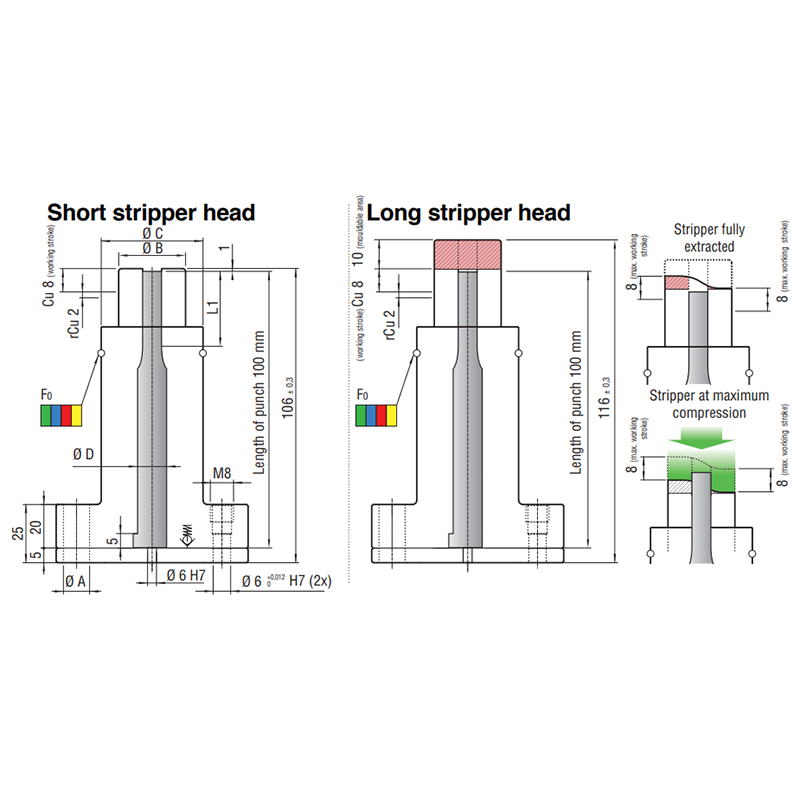

100 mm shoulder style punch length

Reference to nitrogen
punching unit code

punchShort model stripper head
punch length = 90 mm
Long model stripper head
punch length = 90 mm
mmCodef mmCodef mm
3L PO1A 10 42 S 015 1,5 42 S 16 1,5
3L PO2A 13 42 S 17 3 42 S 18 3
3L PO3A 16 42 S 17 3 42 S 18 3
3L PO4A 20 42 S 21 3 42 S 22 3
3L PO5A 25 42 S 21 3 42 S 22 3
3L PO6A 32 42 S 25 3 42 S 26 3
3L PO7A 40 42 S 27 3 42 S 28 3



images/300/Nitrogen_punching_unit__bottom_image_W.png



Application example

3L Nitrogen Punching Press in assembly with a cam unit.

images/300/Application_axample_of_3L_nitrogen_punching_press_on_a_cam_unit_W.png



The video below shows this assembly in action.
