Press Tool Standard Parts > Demountable Pillar & Bush Blocks
< Previous Product Next Product >

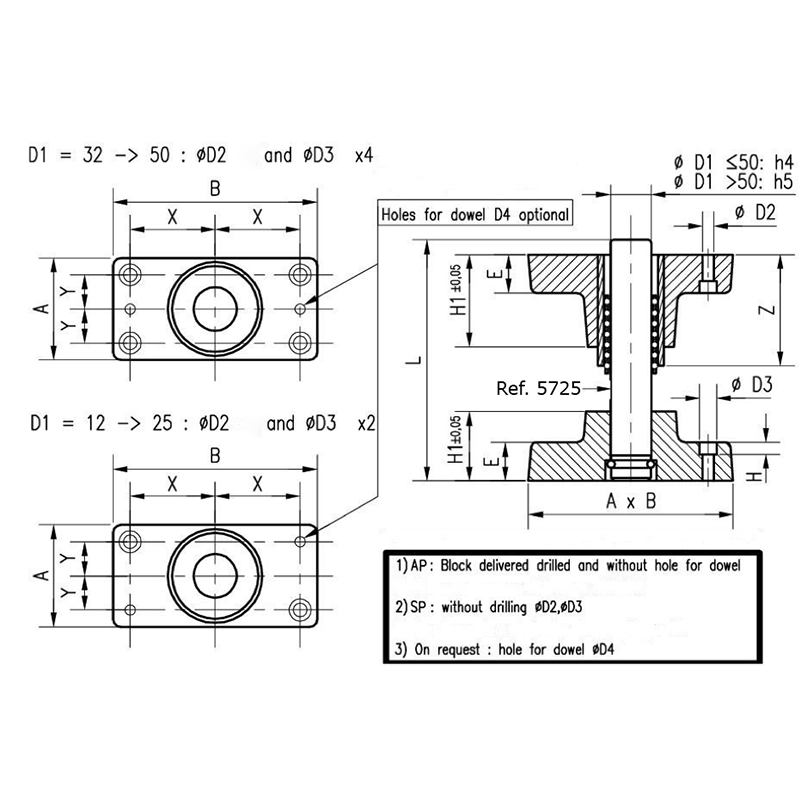

5671 Top Demountable Block with Ball Bush for Guide Pillars 5725




Type AP - Block drilled, without dowel hole

Type SP - Block undrilled

Type APD - Block drilled, with dowel hole ØD4 (on request)

Select Values to Buy:

Tech Spec:



5671 Top Demountable Block  with Ball Bush for Guide Pillars 5725

Saving time and money by allowing the pillar and bush to be lifted from the tooling in one piece these demountable blocks for guide pillars make press tooling quicker and more efficient. With ball bush. Compatible with guide pillars 5725, which are recommended for use with ball bushes due to their hard wearing properties.

Manufactured from top quality steel, for it's hardwearing and long lasting properties, this is a cost effective choice.

Specification

Steel

Select / Deselect Visible Columns
PartCodeD1Course
Stroke
D2D3D4ABEHXYH1TypeZMass

5671-012-025-AP12256.6126325612.57218.5201230.175
5671-012-025-SP12256.6126325612.57218.5201230.175
5671-012-038-AP12386.6126325612.57218.5202300.25
5671-012-038-SP12386.6126325612.57218.5202300.25
5671-016-044-AP16446.6126407116726.512.5251300.34
5671-016-044-SP16446.6126407116726.512.5251300.34
5671-016-062-AP16626.6126407116726.512.5252380.36
5671-016-062-SP16626.6126407116726.512.5252380.36
5671-016-080-AP16806.6126407116726.512.5253480.38
5671-016-080-SP16806.6126407116726.512.5253480.38
5671-020-060-AP2060916845801893012.5321380.4
5671-020-060-SP2060916845801893012.5321380.4
5671-020-074-AP2074916845801893012.5322480.5
5671-020-074-SP2074916845801893012.5322480.5
5671-020-103-AP20103916845801893012.5323610.675
5671-020-103-SP20103916845801893012.5323610.675
5671-025-069-AP25699168569018935.517.75401480.795
5671-025-069-SP25699168569018935.517.75401480.795
5671-025-097-AP25979168569018935.517.75402610.84
5671-025-097-SP25979168569018935.517.75402610.84
5671-025-134-AP251349168569018935.517.75403780.9
5671-025-134-SP251349168569018935.517.75403780.9
5671-032-094-AP329491610711122094525501611.53
5671-032-094-SP329491610711122094525501611.53
5671-032-128-AP3212891610711122094525502781.63
5671-032-128-SP3212891610711122094525502781.63
5671-032-161-AP3216191610711122094525503981.74
5671-032-161-SP3216191610711122094525503981.74
5671-040-112-AP401121118128513225115330631782.65
5671-040-112-SP401121118128513225115330631782.65
5671-040-153-AP401531118128513225115330632982.8
5671-040-153-SP401531118128513225115330632982.8
5671-040-207-AP4020711181285132251153306331233
5671-040-207-SP4020711181285132251153306331233
5671-050-153-AP5015314221211216028136640801985.5
5671-050-153-SP5015314221211216028136640801985.5
5671-050-202-AP50202142212112160281366408021235.9
5671-050-202-SP50202142212112160281366408021235.9
5671-050-269-AP50269142212112160281366408031586.4
5671-050-269-SP50269142212112160281366408031586.4
