5738 Demountable Guide Bush, Long Spigot





Select Values to Buy:

Tech Spec:

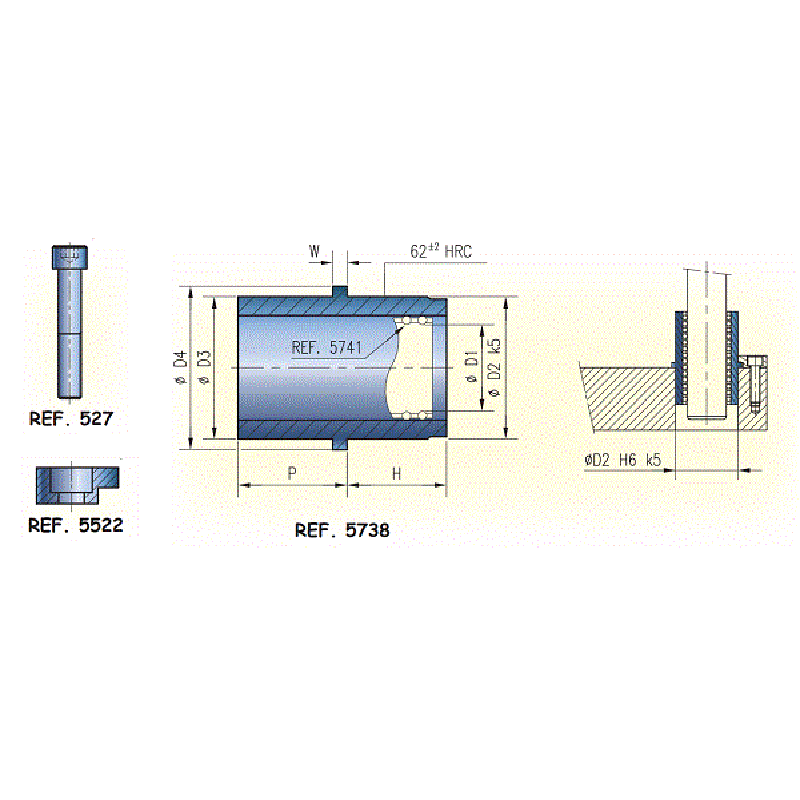

5738 Demountable Guide Bush, Long Spigot

These demountable, long spigot guide bushes for press tools are a precision guiding element suitable for use in conjunction with ball cages 5741. NF E 63-123 standard.

5738 guide bushes are sold as assemblies (including clamps 5522 and cap screws)

Specification

Through hardened steel

How to order

Ref:  5738   D1 = 40   H = 61   =>   5738-040-061

Select / Deselect Visible Columns
PartCodeD1HD2D3D4WpNo. of Clamps
5522
Mass

5738-012-018121822222532520.05
5738-012-023122322222532520.069
5738-016-023162328293233220.16
5738-016-030163028293233220.17
5738-016-038163828293233220.17
5738-020-023202332323643620.152
5738-020-030203032323643620.188
5738-020-038203832323643620.208
5738-020-048204832323643620.233
5738-025-023252340414544020.273
5738-025-030253040414544020.298
5738-025-038253840414544020.328
5738-025-048254840414544020.363
5738-025-061256140414544020.408
5738-032-030323050515654530.524
5738-032-038323850515654530.569
5738-032-048324850515654530.624
5738-032-061326150515654530.699
5738-032-078327850515654530.789
5738-040-030403063657055030.889
5738-040-038403863657055030.959
5738-040-048404863657055031.049
5738-040-061406163657055031.169
5738-040-078407863657055031.319
5738-040-098409863657055031.504
5738-050-038503880849066331.914
5738-050-048504880849066332.064
5738-050-061506180849066332.259
5738-050-078507880849066332.514
5738-050-098509880849066332.814
5738-063-098639890100110106343.609
5738-063-1236312390100110106343.989
5738-080-12380123110125135107046.289
5738-080-15880158110125135107047.069
