Please select desired options to reveal part number, price and availability
Options

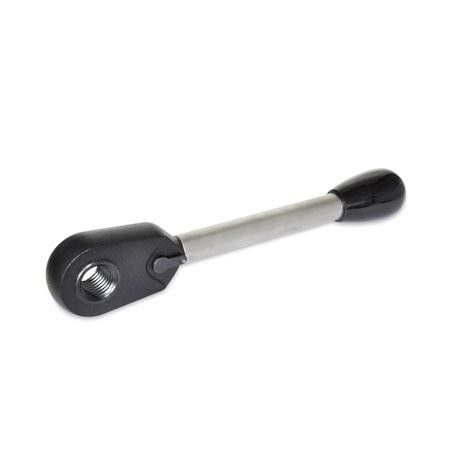

Type M - d2 threaded.

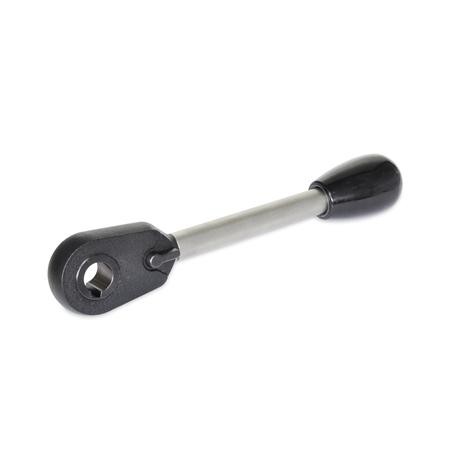

Type K - d3 with keyway.
Type V - s1 square.
Type SK - s2 hexagon.*
*not available from stock, requires a minimum order quantity.
Product Description
GN316 Ratchet Spanner, Interchangable, Steel.
These ratchet spanners are well designed, of robust construction and simple to use.
They are also practical for fixed applications on any machinery and equipment, for example for assembly and repair work.
They are easily changed by simply removing the screw and cover.
Please enquire about these and also ratchet spanners with other handle lengths.
Specification
Housing - Steel ST, plastic coated, black matt, textured finish.
Shaft - Zinc plated, blue passivated.
Wearing parts - Hardened.
On Request
Interchangable inserts can be supplied indivually while stocks last
Standard part number GN317 & GN317.1 has been changed! Because of a change of the standard part number your input is no longer valid. Your search was automatically changed to the new standard part number GN316.
CAD Viewer
Technical Data
