BRT Heavy Duty Ball Lock Punch Retainer



CloseNextPrevious
CloseNextPrevious
CAD Viewer Technical Data

Series Selector

CAD Viewer Technical Data

Product Description

BRT Heavy Duty Ball Lock Punch Retainer.

The interchangeable retainer that is the industry standard.

Advantages include:

The in-line dowel guarantees precise punch-to-button alignment - you gain higher quality parts, longer punch life and drastically reduced downtime.

True-position retainers eliminate hand fitting and cut mounting time by nearly 50%. Simply pull the retainer from its box and screw it to the die set. True position retainers give you dimensional accuracy every time.

Shaped punches use the secondary dowel for precise alignment; round punches need only one.

The precision-ground ball hole assures perfect alignment of any punch shape even if you replace the retainer.

Tapped ball release hole.

True position adaptability can cut your retainer inventory in half.

Specification

True position retainer includes:

1 Ball

1 Spring

2 Screws

2 Threaded Dowels

1 Ball Release Screw

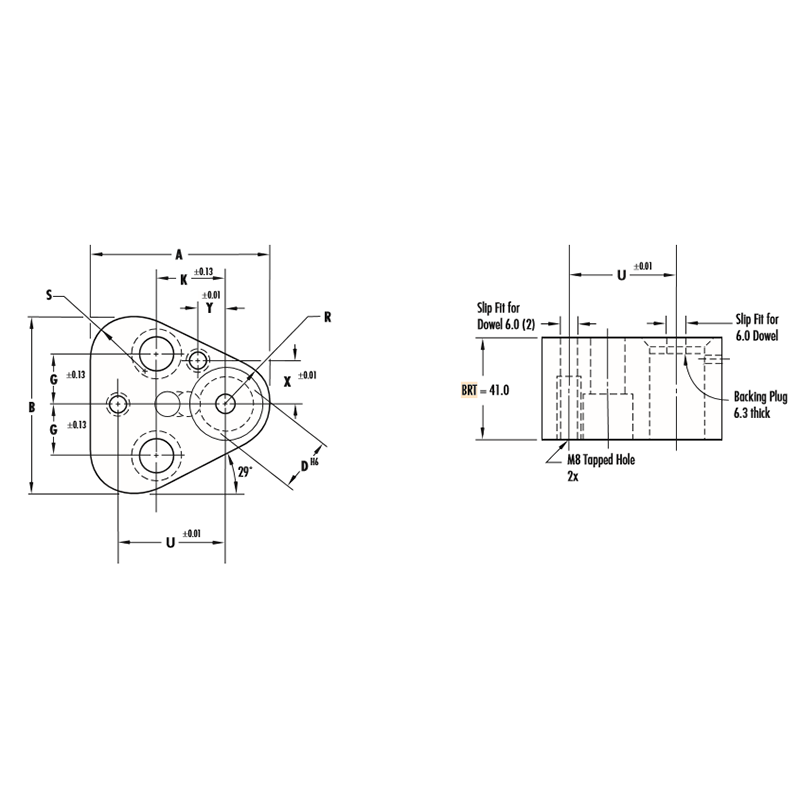

images/300/BRT_and_CRT_Ball_Lock_Retainer_H.jpg
