C5A Demountable Conical Pillars ISO 9448

Press Tool Standard Parts > Guide Pillars (Pins), Bushes & Cages, ISO, IEM, JIS standards > ISO Standard Range of Guide Pillars, Ball Cages & Bushes
< Previous Product Next Product >

C5A Demountable Conical Pillar ISO

Select Values to Buy:

Tech Spec:



C5A Demountable Conical Pillar ISO 9448

 These demountable conical pillars are made to ISO 9448 standards, using top quality steel for a long service life.

Specification

Material - 1.7131

Hardness - HRC 61-63

Select / Deselect Visible Columns

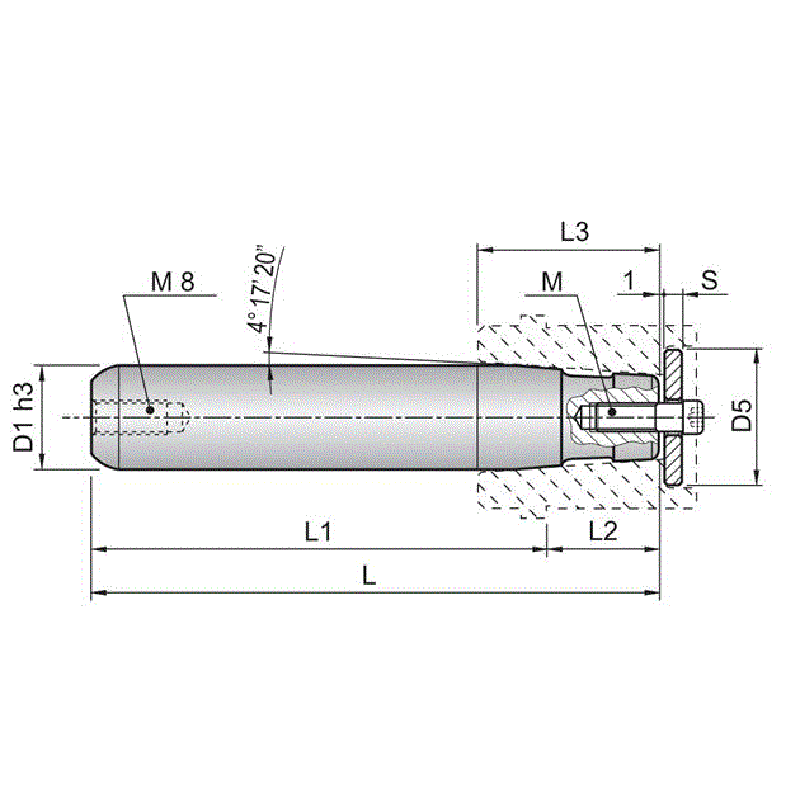

PartCodeD1L1ML3SD5LMass

C5A-24-10024100M8x20354251250.36
C5A-24-11224112M8x20354251350.4
C5A-24-12524125M8x20354251480.52
C5A-24-14024140M8x20354251630.525
C5A-24-16024160M8x20354251830.66
C5A-24-18024180M8x20354252030.683
C5A-24-20024200M8x20354252230.755
C5A-24-22424224M8x20354252470.814
C5A-24-25024250M8x20354252730.934
C5A-25-10025100M8x20354251250.434
C5A-25-11225112M8x20354251350.52
C5A-25-12525125M8x20354251480.6
C5A-25-14025140M8x20354251630.56
C5A-25-16025160M8x20354251830.78
C5A-25-18025180M8x20354252030.76
C5A-25-20025200M8x20354252230.8
C5A-25-22425224M8x20354252471.06
C5A-25-25025250M8x20354252731.12
C5A-30-11230112M8x20484321450.802
C5A-30-12530125M8x20484321580.82
C5A-30-14030140M8x20484321730.885
C5A-30-16030160M8x20484321931.006
C5A-30-18030180M8x20484322131.107
C5A-30-20030200M8x20484322330.88
C5A-30-22430224M8x20484322570.86
C5A-30-25030250M8x20484322830.94
C5A-30-28030280M8x20484323131.621
C5A-32-11232112M8x20484321450.76
C5A-32-12532125M8x20484321580.898
C5A-32-14032140M8x20484321730.99
C5A-32-16032160M8x20484321930.92
C5A-32-18032180M8x20484322131.238
C5A-32-20032200M8x20484322331.2
C5A-32-22432224M8x20484322571.546
C5A-32-25032250M8x20484322831.708
C5A-32-28032280M8x20484323132.16
C5A-38-12538125M8x20484401581.313
C5A-38-14038140M8x20484401731.442
C5A-38-16038160M8x20484401931.626
C5A-38-18038180M8x20484402131.803
C5A-38-20038200M8x20484402331.98
C5A-38-22438224M8x20484402572.2
C5A-38-25038250M8x20484402832.44
C5A-38-28038280M8x20484403132.8
C5A-38-31538315M8x20484403483.2
C5A-40-12540125M8x20484401581.461
C5A-40-14040140M8x20484401731.7
C5A-40-16040160M8x20484401931.88
C5A-40-18040180M8x20484402132
C5A-40-20040200M8x20484402332.14
C5A-40-22440224M8x20484402572.6
C5A-40-25040250M8x20484402832.7
C5A-40-28040280M8x20484403132.936
C5A-40-31540315M8x20484403483.5
C5A-48-14048140M10x20585501802.7
C5A-48-16048160M10x20585502002.666
C5A-48-18048180M10x20585502202.946
C5A-48-20048200M10x20585502403.6
C5A-48-22448224M10x20585502643.521
C5A-48-25048250M10x20585502903.942
C5A-48-28048280M10x20585503204.303
C5A-48-31548315M10x20585503554.86
C5A-48-35548355M10x20585503955.4
C5A-50-14050140M10x20585501801.74
C5A-50-16050160M10x20585502002.899
C5A-50-18050180M10x20585502202.58
C5A-50-20050200M10x20585502403.82
C5A-50-22450224M10x20585502643.9
C5A-50-25050250M10x20585502904.3
C5A-50-28050280M10x20585503204.94
C5A-50-31550315M10x20585503555.28
C5A-50-35550355M10x20585503956.34
C5A-60-16060160M12x30696632114.6
C5A-60-18060180M12x30696632314.86
C5A-60-20060200M12x30696632515.26
C5A-60-22460224M12x30696632755.852
C5A-60-25060250M12x30696633016.6
C5A-60-28060280M12x30696633317.12
C5A-60-31560315M12x30696633667.8
C5A-60-35560355M12x30696634068.68
C5A-63-16063160M12x30696632115.44
C5A-63-18063180M12x30696632315.32
C5A-63-20063200M12x30696632516.322
C5A-63-22463224M12x30696632756.4
C5A-63-25063250M12x30696633017.06
C5A-63-28063280M12x30696633317.6
C5A-63-31563315M12x30696633668.69
C5A-63-35563355M12x30696634069.668
