GN330
Cables & Connectors For Tubular Handles
Please select desired options to reveal part number, price and availability
Options
Contact type LK - Indicator light LED, red / green (bi-color) (no switching function)
Contact type RK - Button, latching, with LED, red / green (bi-color)
Contact type RO - Button, latching, without LED
Contact type TK - Button, with LED, red / green (bi-color)
Contact type TO - Button, without LED

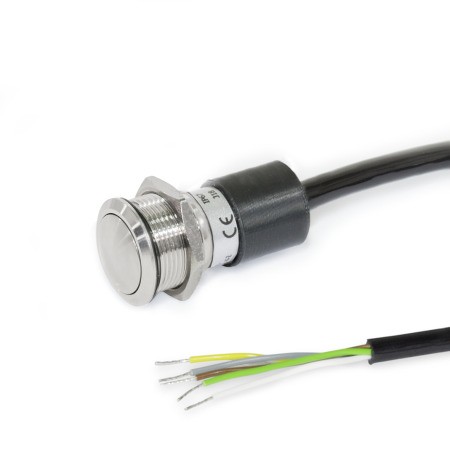

Connection type K2 - Cable, end open, 2m
Connection Type K5 - Cable, end open, 5m

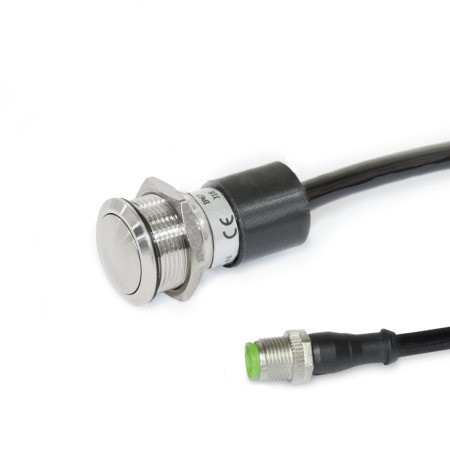

Connection Type S025 - Cable with plug, 0.25m
Product Description
GN3310 Switches with Illuminated Push Button
Depending on the type, buttons / indicator lights GN 3310 can send electrical control signals and indicate the status of a machine control, for example, via the integrated LEDs.

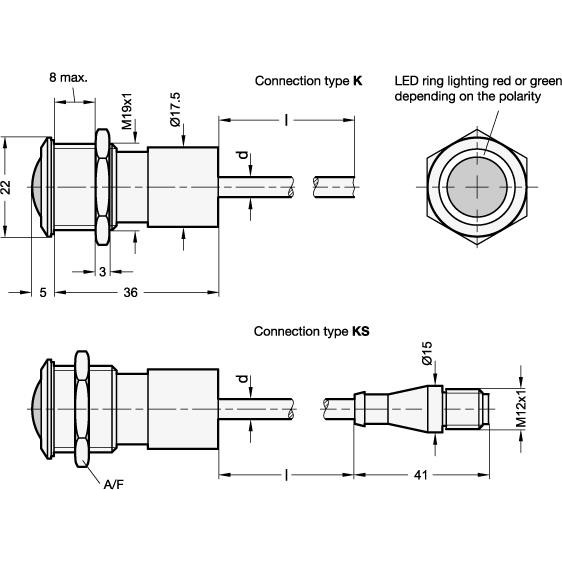

Depending on the connection type, they are connected via a cable with an open end or via a plug.

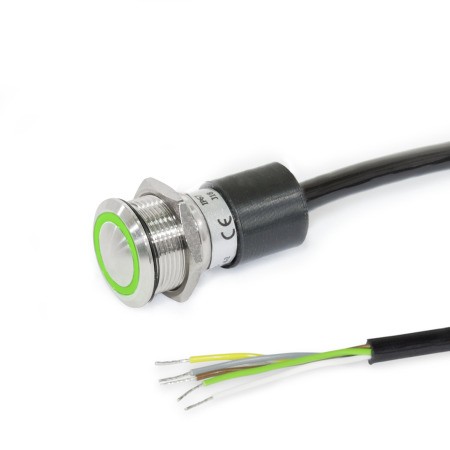

The LEDs light up red or green depending on the polarity at the connections.
Specification
Accessory
GN330 Cables with connector coupling (5 pole, 5 or 10 meters long, for extension)
