GN331 Tubular Handles With Power Switching Function

CloseNextPrevious



CloseNextPrevious

GN331: Tubular Handle - Finish: EL
Type: T0 - Identification No.: 2



CloseNextPrevious

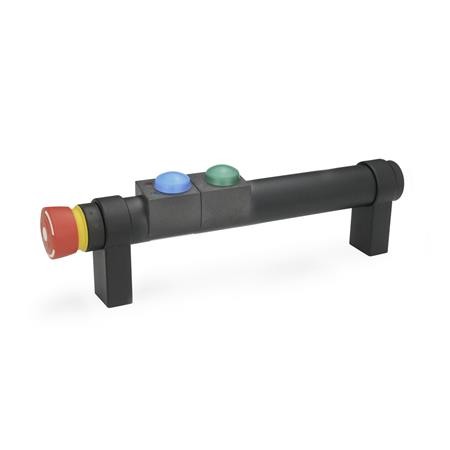

GN331: Tubular Handle - Finish: SW
TypeT2 - Identiciation No.: 2



CloseNextPrevious

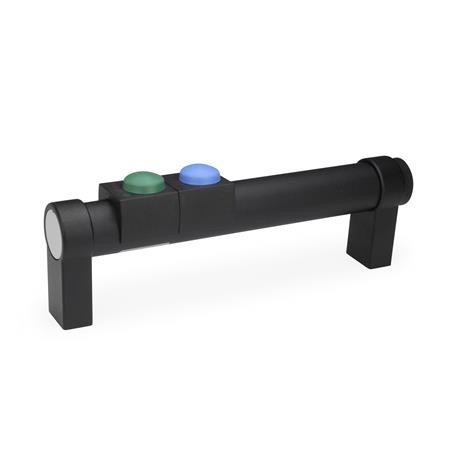

GN331: Tubular Handle - Finish: SW
Type: T2 - Identification No.: 1



CloseNextPrevious

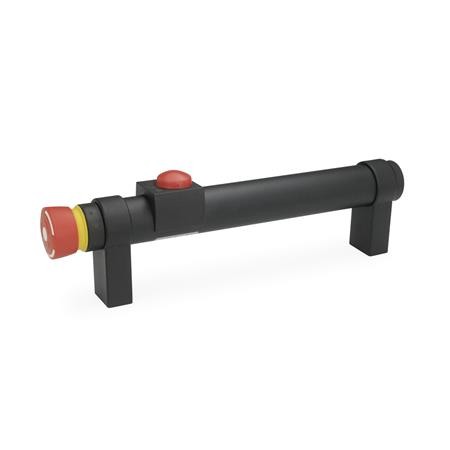

GN331: Tubular Handle - Finish: SW
Type: T1 - Identification No.: 2



CloseNextPrevious

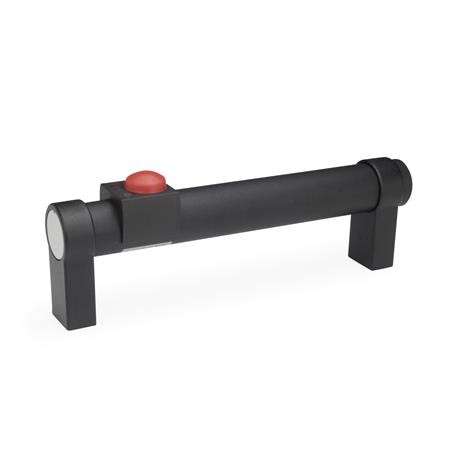

GN331: Tubular Handle - Finish: SW
Type: T1 - Identification No.: 1



CloseNextPrevious

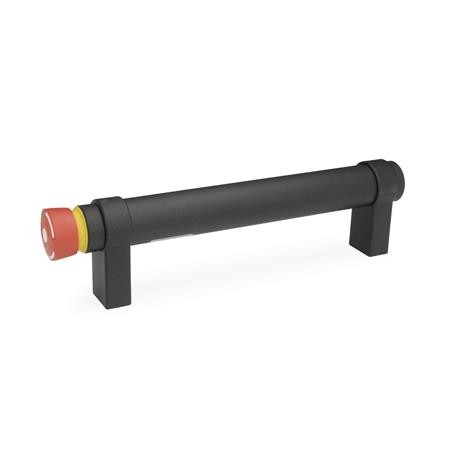

GN331: Tubular Handle - Finish: SW
Type: T0 - Identification No.: 2



CloseNextPrevious

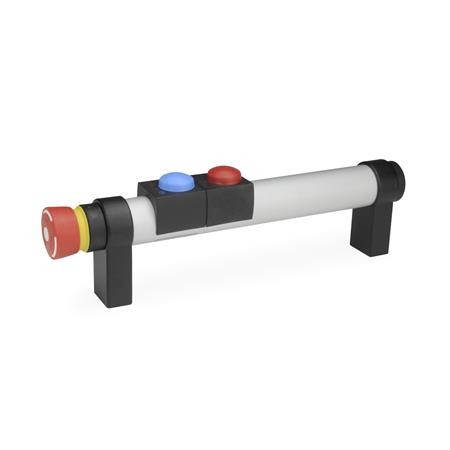

GN331: Tubular Handle - Finish: EL
Type: T2 - Identification No.: 2



CloseNextPrevious

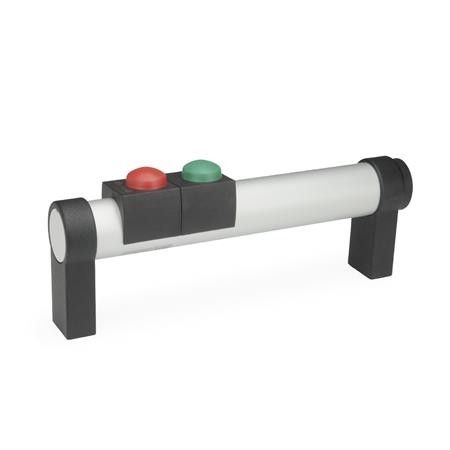

GN331: Tubular Handle - Finish: EL
Type: T2 - Identification No.: 1



CloseNextPrevious

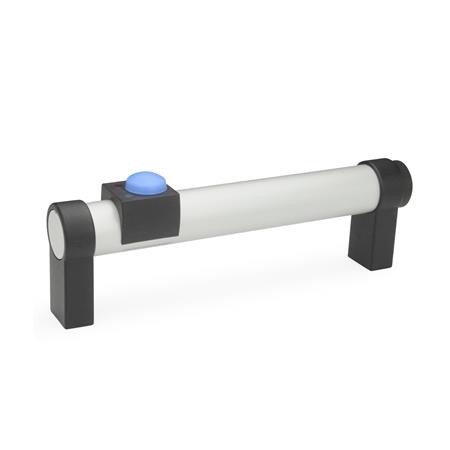

GN331: Tubular Handle - Finish: EL
Type: T1 - Identification No.: 1



CloseNextPrevious

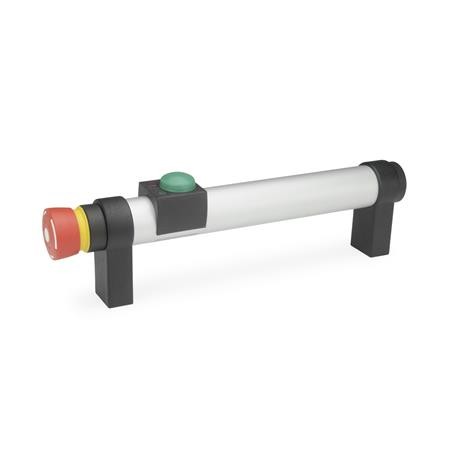

GN331: Tubular Handle - Finish: EL
Type: T1 - Identification No.: 2



CAD Viewer Technical Data

Series Selector

Options

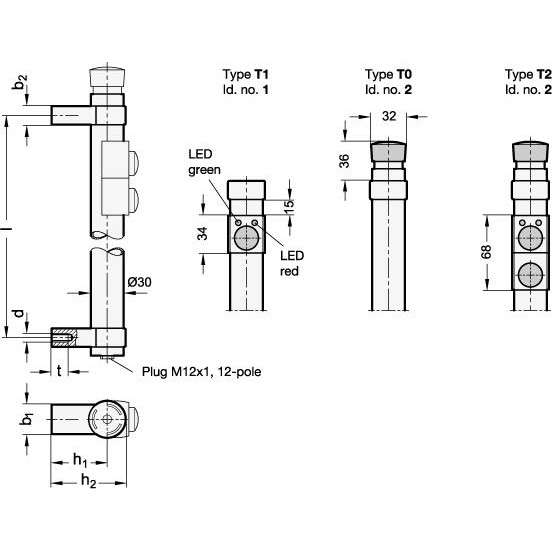

Type T0 - Without Button

Type T1 - With One Button

Type T2 - With Two Buttons

Identification no. 1 - Without Emergency Stop

Identification no. 2 - With Emergency Stop

CAD Viewer Technical Data

Product Description

GN331 Tubular Handles With Power Switching Function

These tubular handles GN 331 with power switching function are suitable for unlocking safety tumblers in rotating, detachable or side sliding safety devices which must be closed in order to ensure the required operational safety.

By integrating functions such as emergency stop, start, release, reset and LED status display, this tubular handle allows the machine to be monitored and operated directly at the door or gate.

These handles save mounting and installation work, are attractively and ergonomically designed: the switching and operating functions are located exactly where they are needed.

Specification

Tube 30 x 1,5 - Aluminium AL, plastic coated, black, RAL 9005, textured finish, SW. Anodized, natural colour EL.

Handle shanks - Zinc die casting, plastic coated, black, RAL 9005, textured finish SW.

Cover caps - (for version without emergency stop), plastic, light grey.
