GN333.3 Tubular Handles Adjustable Shanks easily created machine covers GN 333.3 333-3 GN333-3 GN 333-3

Standard Parts for Clamping & Operating & Machine Fixtures > Cabinet, U & Tubular Handles, Gripping Trays > Tubular Handles
< Previous Product Next Product >

GN333.3 Tubular Handle with Adjustable Handle Shanks

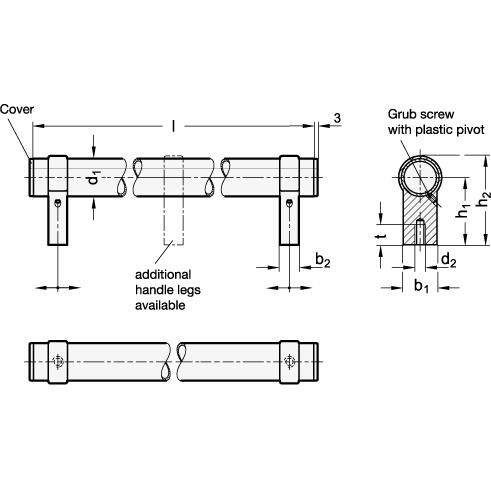

images/300/GN333.3-Tubular-handles-with-movable-handle-legs-sketch_H.png



Type A - Mounting from the back (threaded blind bore)

Select Values to Buy:

Tech Spec:



GN 333.3 Tubular Handle with Adjustable Handle Shanks.

The spacing of the attachment holes of these popular tubular handles, GN333.3, is adjustable. Further handle shanks can easily be added to create very long handles. They are ideal for swinging doors and machine covers. They are supplied unassembled.

Specification

Tube - Aluminium (Wall thickness 1.5mm)

Handle shanks - Zinc die casting, plastic coated.

Tube/ Handle shanks - plastic coated, black, RAL 9005, textured finish. Cover - plastic, black, matt SW

Tube - anodized, natural colour. Handle shanks - plastic coated, black, RAL 9005, textured finish. Cover - plastic, black, matt ELS

Tube - anodized, natural colour.  Handle shanks - plastic coated, silver, RAL 9006, textured finish. Cover - plastic, light grey, matt  ELG

Special lengths available on request.

RoHS compliant

Select / Deselect Visible Columns
PartCoded1lTypeFinishd2b1b2h1h2tMaterialMass

GN333.3-28-242-A-SW28242ASWM82514506615AL0.3
GN333.3-28-242-A-ELS28242AELSM82514506615AL0.3
GN333.3-28-242-A-ELG28242AELGM82514506615AL0.3
GN333.3-28-292-A-SW28292ASWM82514506615AL0.3
GN333.3-28-292-A-ELS28292AELSM82514506615AL0.32
GN333.3-28-292-A-ELG28292AELGM82514506615AL0.34
GN333.3-28-392-A-SW28392ASWM82514506615AL0.4
GN333.3-28-392-A-ELS28392AELSM82514506615AL0.38
GN333.3-28-392-A-ELG28392AELGM82514506615AL0.375
GN333.3-28-492-A-SW28492ASWM82514506615AL0.44
GN333.3-28-492-A-ELS28492AELSM82514506615AL0.42
GN333.3-28-492-A-ELG28492AELGM82514506615AL0.4
GN333.3-28-592-A-SW28592ASWM82514506615AL0.4
GN333.3-28-592-A-ELS28592AELSM82514506615AL0.48
GN333.3-28-592-A-ELG28592AELGM82514506615AL0.48
