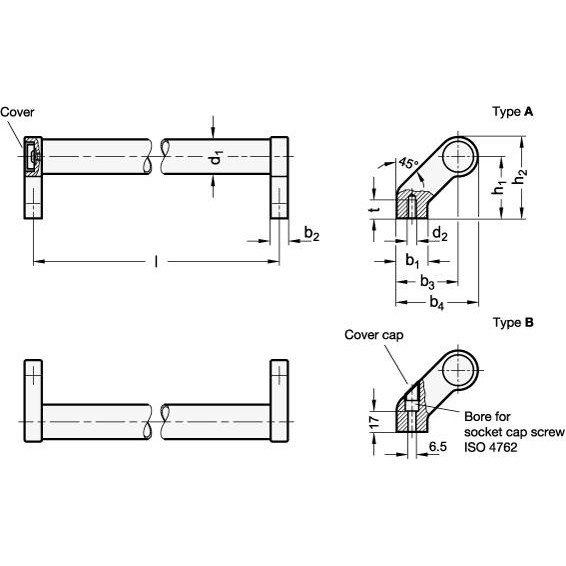

Type A - Mounting from the back (threaded blind bore)

Type B - Mounting from the operators side (only for d1=28)

CAD Viewer Technical Data

Product description

GN 333 Tubular Handle, Offset, Aluminium

These tubular handles, GN333, are extremely stable in relation to their small size. The tube and the shank are interlocked and the mounting screws are covered.

The handle tube of these handles can be screwed to the handle bases without further machining or processing, allowing special lengths to be easily produced.

They are useful for a wide variety of applications, and are often used for swinging and sliding doors on machines, jigs or devices. They are also ideal for double wing doors and for profile systems.

Specification

Handle tube - Aluminium (Wall thickness 1,5)

Handle shanks - Zinc-die casting

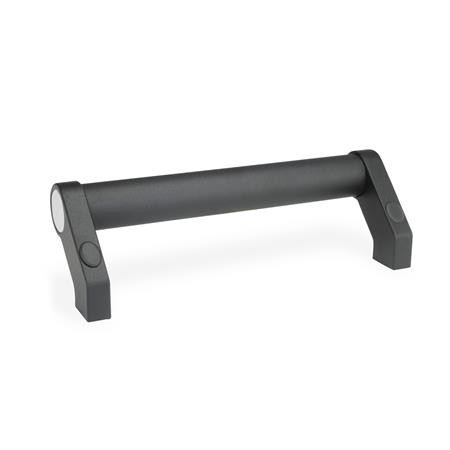

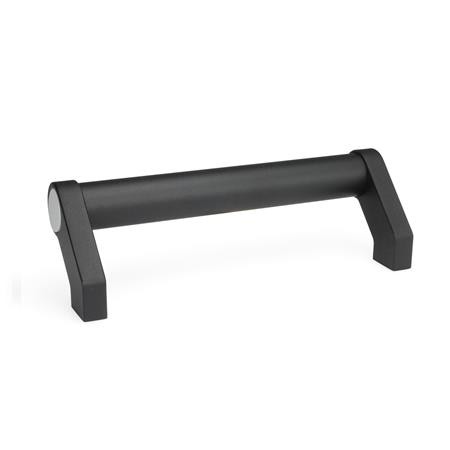

SW Tube - plastic coated, black, RAL 9005, textured finish Handle shanks - plastic coated, black RAL 9005, textured finish.

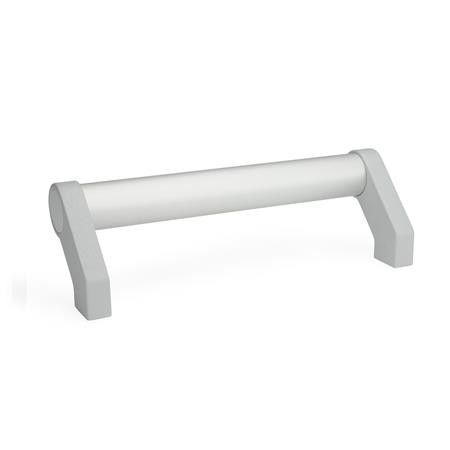

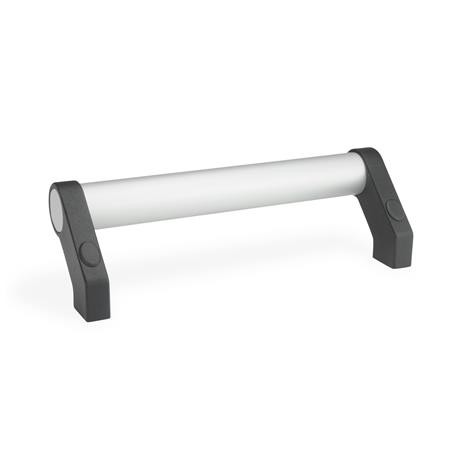

EL Tube - anodized, natural colour. Handle shanks - plastic coated, black RAL 9005, textured finish.

ES Tube - anodized, natural colour. Handle shanks - plastic coated, silver, RAL 9006, textured finish.

End cover caps - Plastic, light grey

Screw cover caps, type B - Plastic (Technopolymer), black (for SW/EL), light grey (for ES).

Application Example

In this example, tubular handles GN333 have been used on this laser cutting machine.
