Standard Parts for Clamping & Operating & Machine Fixtures > Cabinet, U & Tubular Handles, Gripping Trays > Cabinet U Handles
< Previous Product Next Product >

GN423 Cabinet U Handle, Aluminium And Reinforced Plasstic

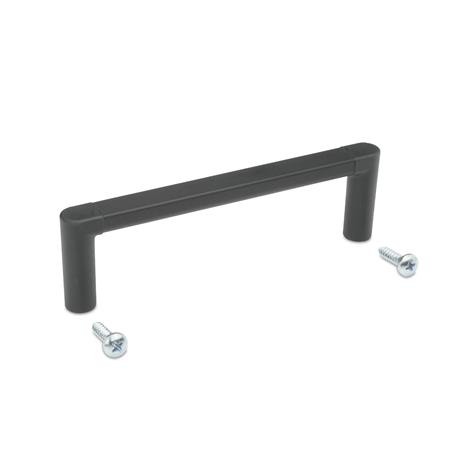

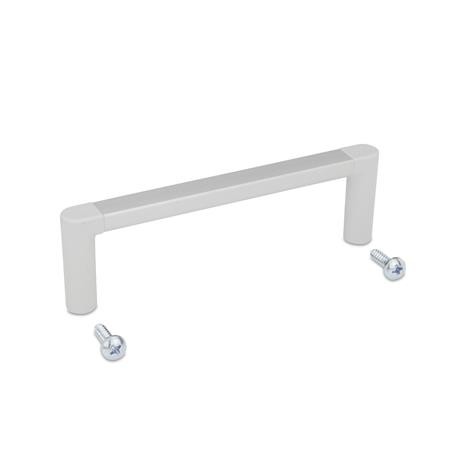

Type A - Mounting from the back (Self-tapping screws)

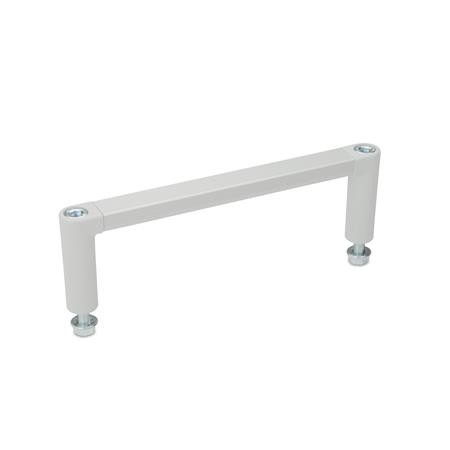

Type B - Mounting from the operator's side

Select Values to Buy:

Tech Spec:



GN423 Cabinet U Handle, Aluminium And Reinforced Plasstic

The dimensions of these U shape handles have been designed to match a 19" rack and enclosure layout, which are commonly used in the telecommunication, computing, audio, video, and entertainment industries.

Handle bar and handle shanks are interconnected via a plug-type connection, with the result that special lengths can be easily created.

Fixing screws are included in the set, so the handles are easily and economically mounted.

We are pleased to announce that these handles have now received the prestigious iF Product Design Award 2014 an award for outstanding and pioneering design.

The iF Product Design Award - Truly useful - a product that succeeds here has thoroughly proven its superior value.

Specification

Handle bar - Aluminium

Handle shanks - Plastic (Polyamide PA), glass fibre reinforced, temperature resistant up to 130C.

Handle bar - anodized, natural colour ELS.

Handle shanks - black, matt.

Handle bar - anodized, natural colour ELG.

Handle shanks - light grey, matt.

Cylinder head screws DIN912-M8-45 - Steel zinc plated, black.

Flange nuts DIN1661-M5 - Steel, zinc plated, blue passivated.

Self-tapping screws ISO7049 - Steel zinc plated ST4,8-19

RoHS compliant

Select / Deselect Visible Columns
PartCodeb1l1TypeFinishb2d1d2d3h1h2l2l3l4l5l6sHEMaterialMass

GN423-12-55-A-ELS1255AELS12.5M54.312.54034.567.5514510.592AL0.027
GN423-12-55-A-ESS1255AESS12.5M54.312.54034.567.5514510.592AL0.025
GN423-12-55-A-ELG1255AELG12.5M54.312.54034.567.5514510.592AL0.027
GN423-12-55-B-ELS1255BELS12.5M54.312.54034.567.5514510.592AL0.037
GN423-12-55-B-ESS1255BESS12.5M54.312.54034.567.5514510.592AL0.037
GN423-12-55-B-ELG1255BELG12.5M54.312.54034.567.5514510.592AL0.038
GN423-12-88-A-ELS1288AELS12.5M54.312.54034.5100.5514510.593AL0.031
GN423-12-88-A-ESS1288AESS12.5M54.312.54034.5100.5514510.593AL0.031
GN423-12-88-A-ELG1288AELG12.5M54.312.54034.5100.5514510.593AL0.031
GN423-12-88-B-ELS1288BELS12.5M54.312.54034.5100.5514510.593AL0.042
GN423-12-88-B-ESS1288BESS12.5M54.312.54034.5100.5514510.593AL0.042
GN423-12-88-B-ELG1288BELG12.5M54.312.54034.5100.5514510.593AL0.043
GN423-12-100-A-ELS12100AELS12.5M54.312.54034.5112.5514510.593AL0.034
GN423-12-100-A-ESS12100AESS12.5M54.312.54034.5112.5514510.593AL0.034
GN423-12-100-A-ELG12100AELG12.5M54.312.54034.5112.5514510.593AL0.034
GN423-12-100-B-ELS12100BELS12.5M54.312.54034.5112.5514510.593AL0.046
GN423-12-100-B-ESS12100BESS12.5M54.312.54034.5112.5514510.593AL0.045
GN423-12-100-B-ELG12100BELG12.5M54.312.54034.5112.5514510.593AL0.046
GN423-12-120-A-ELS12120AELS12.5M54.312.54034.5132.5514510.594AL0.037
GN423-12-120-A-ESS12120AESS12.5M54.312.54034.5132.5514510.594AL0.037
GN423-12-120-A-ELG12120AELG12.5M54.312.54034.5132.5514510.594AL0.037
GN423-12-120-B-ELS12120BELS12.5M54.312.54034.5132.5514510.594AL0.048
GN423-12-120-B-ESS12120BESS12.5M54.312.54034.5132.5514510.594AL0.048
GN423-12-120-B-ELG12120BELG12.5M54.312.54034.5132.5514510.594AL0.048
GN423-12-180-A-ELS12180AELS12.5M54.312.54034.5192.5514510.595AL0.05
GN423-12-180-A-ESS12180AESS12.5M54.312.54034.5192.5514510.595AL0.05
GN423-12-180-A-ELG12180AELG12.5M54.312.54034.5192.5514510.595AL0.05
GN423-12-180-B-ELS12180BELS12.5M54.312.54034.5192.5514510.595AL0.061
GN423-12-180-B-ESS12180BESS12.5M54.312.54034.5192.5514510.595AL0.059
GN423-12-180-B-ELG12180BELG12.5M54.312.54034.5192.5514510.595AL0.058
GN423-12-235-A-ELS12235AELS12.5M54.312.54034.5247.5514510.596AL0.059
GN423-12-235-A-ESS12235AESS12.5M54.312.54034.5247.5514510.596AL0.059
GN423-12-235-A-ELG12235AELG12.5M54.312.54034.5247.5514510.596AL0.059
GN423-12-235-B-ELS12235BELS12.5M54.312.54034.5247.5514510.596AL0.067
GN423-12-235-B-ESS12235BESS12.5M54.312.54034.5247.5514510.596AL0.066
GN423-12-235-B-ELG12235BELG12.5M54.312.54034.5247.5514510.596AL0.068
