GN425.1 Cabinet U Handles Offset

Standard Parts for Clamping & Operating & Machine Fixtures > Cabinet, U & Tubular Handles, Gripping Trays > Cabinet U Handles
< Previous Product Next Product >

GN425.1 Cabinet U Shape Handle, Offset

Select Values to Buy:

Tech Spec:



GN425.1 Cabinet U Shape Handle, Offset

These cabinet U handles have an offset shape, which is useful when access is restricted.

The 8mm and 10mm diameters are supplied complete with two location discs, which guarantees a perfect location even with large holes in the cabinet.

The manufacturing process (bending) allows the production of special lengths in relatively small quantities.

GN425.1 in a d1 of 8mm and a length of 55mm is suitable for a 19“ rack and enclosure layout.

Specification

Aluminum AL - black, RAL 9005, textured finish SW. Silver, RAL 9006, textured finish SR. Red, RAL 3000, textured finish RS. Anodized, natural colour EL.

Location discs - Stainless Steel AISI 303

These handles are also available in steel GN425.1 and stainless steel GN425.1

RoHS compliant

Select / Deselect Visible Columns

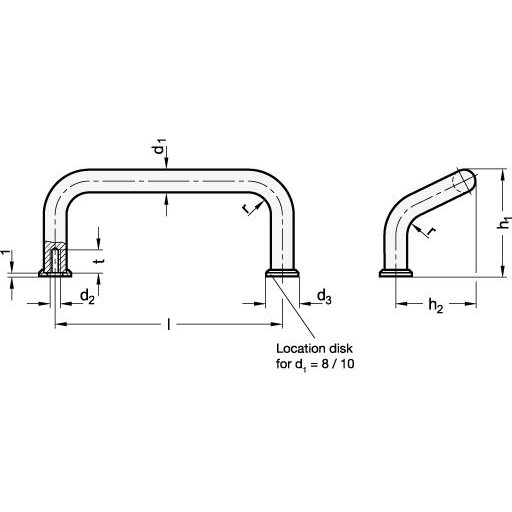

PartCodeMateriald1 length (l)Finishd2d3h1h2rtMass

GN425.1-AL-8-55-SWAL855SWM4124030980.024
GN425.1-AL-8-55-SRAL855SRM4124030980.023
GN425.1-AL-8-55-RSAL855RSM4124030980.023
GN425.1-AL-8-55-ELAL855ELM4124030980.05
GN425.1-AL-8-64-SWAL864SWM4124030980.024
GN425.1-AL-8-64-SRAL864SRM4124030980.024
GN425.1-AL-8-64-RSAL864RSM4124030980.025
GN425.1-AL-8-64-ELAL864ELM4124030980.027
GN425.1-AL-8-88-SWAL888SWM4124030980.028
GN425.1-AL-8-88-SRAL888SRM4124030980.028
GN425.1-AL-8-88-RSAL888RSM4124030980.028
GN425.1-AL-8-88-ELAL888ELM4124030980.027
GN425.1-AL-8-96-SWAL896SWM4124030980.03
GN425.1-AL-8-96-SRAL896SRM4124030980.029
GN425.1-AL-8-96-RSAL896RSM4124030980.029
GN425.1-AL-8-96-ELAL896ELM4124030980.027
GN425.1-AL-8-100-SWAL8100SWM4124030980.031
GN425.1-AL-8-100-SRAL8100SRM4124030980.027
GN425.1-AL-8-100-RSAL8100RSM4124030980.028
GN425.1-AL-8-100-ELAL8100ELM4124030980.029
GN425.1-AL-10-88-SWAL1088SWM515473511120.044
GN425.1-AL-10-88-SRAL1088SRM515473511120.044
GN425.1-AL-10-88-RSAL1088RSM515473511120.004
GN425.1-AL-10-88-ELAL1088ELM515473511120.044
GN425.1-AL-10-100-SWAL10100SWM515473511120.047
GN425.1-AL-10-100-SRAL10100SRM515473511120.004
GN425.1-AL-10-100-RSAL10100RSM515473511120.04
GN425.1-AL-10-100-ELAL10100ELM515473511120.047
GN425.1-AL-10-120-SWAL10120SWM515473511120.054
GN425.1-AL-10-120-SRAL10120SRM515473511120.05
GN425.1-AL-10-120-RSAL10120RSM515473511120.05
GN425.1-AL-10-120-ELAL10120ELM515473511120.052
GN425.1-AL-10-180-SWAL10180SWM515473511120.065
GN425.1-AL-10-180-SRAL10180SRM515473511120.004
GN425.1-AL-10-180-RSAL10180RSM515473511120.004
GN425.1-AL-10-180-ELAL10180ELM515473511120.064
GN425.1-AL-10-200-SWAL10200SWM515473511120.07
GN425.1-AL-10-200-SRAL10200SRM515473511120.004
GN425.1-AL-10-200-RSAL10200RSM515473511120.004
GN425.1-AL-10-200-ELAL10200ELM515473511120.068
GN425.1-AL-12-125-SWAL12125SWM6~524013120.078
GN425.1-AL-12-125-ELAL12125ELM6~524013120.079
GN425.1-AL-12-160-SWAL12160SWM6~524013120.09
GN425.1-AL-12-160-ELAL12160ELM6~524013120.09
GN425.1-AL-12-200-SWAL12200SWM6~524013120.102
GN425.1-AL-12-200-ELAL12200ELM6~524013120.103
GN425.1-AL-12-250-SWAL12250SWM6~524013120.12
GN425.1-AL-12-250-ELAL12250ELM6~524013120.115
