GN429 Cabinet U Handles, Hygienic Design
Choose your Part
Please select desired options to reveal part number, price and availability
Material
A4
d1 Handle diameter
12 16 20
l Length
125 160 200 250 300
Finish
MT PL
Material (Sealing Ring)
E F H
Stock Availability
Up to 1 for same day dispatch (order before 14:00)
Options

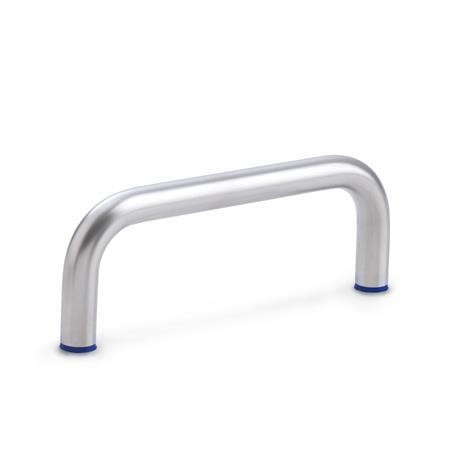

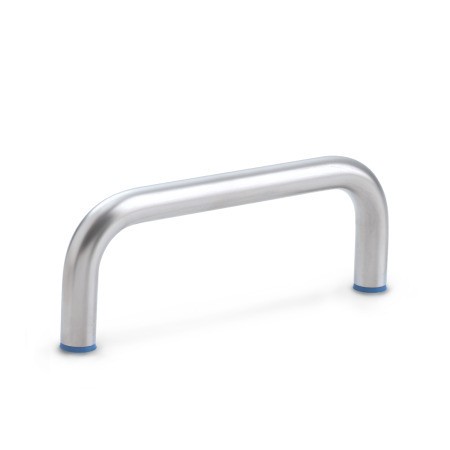

Type MT - Matte

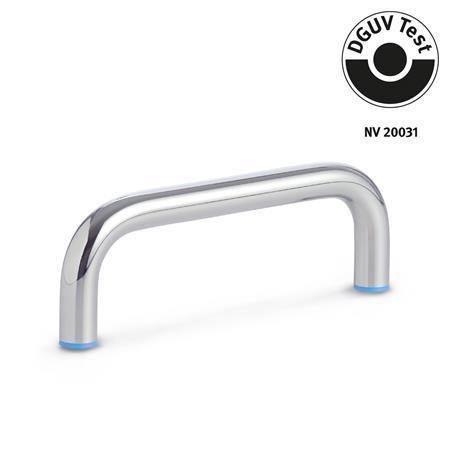

Type PL - Polished
Product Description
GN429 Hygienic Design Cabinet U Handles
GN 429 cabinet U handles are intended for use in hygiene areas. The sealed mounting surfaces enable fastening without dead spaces. The high-quality finish prevents the adherence of dirt and facilitates cleaning. The version with PL finish also complies with the DGUV testing principles.
The manufacturing process (bending) allows the production of special lengths in relatively small quantities.
Specification
- Stainless Steel A4 AISI 316 L.
- Matt (Ra < 0.8 µm) MT.
- Polished (Ra < 0.8 µm) PL.
- Sealing Ring - Blue, Hardness 85±5 Shore A, FDA compliant
- Sealing ring material H, H-NBR- Temperature resistant -25°C to + 150°C
- Sealing ring material E, EPDME- Temperature resistant -40°C to + 120°C
- Sealing ring material F FKN - Temperature resistant -5°C to +200°C
Accessory
Sealing ring GN7600
CAD Viewer
Technical Data
