GN565.2 Cabinet U Shape Handle, Offset / Inclined

CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CAD Viewer Technical Data

Series Selector

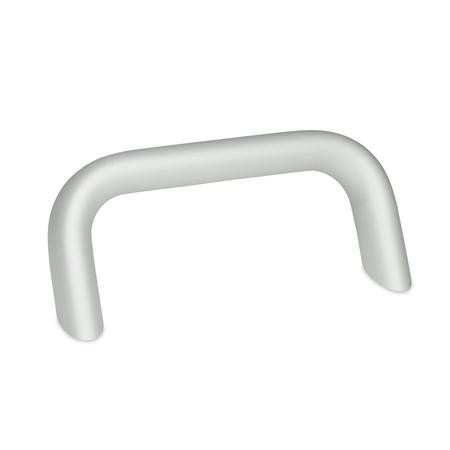

Type A - Mounting from the back (threaded blind bore).

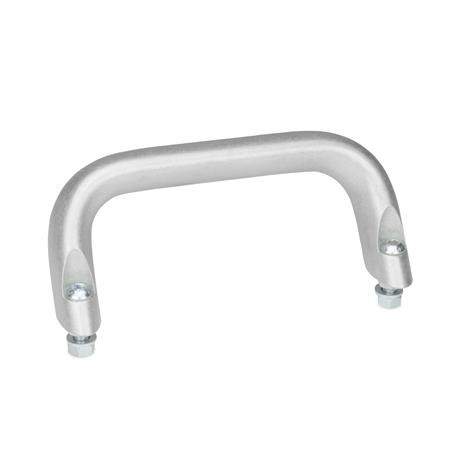

Type B - Mounting from the operator's side.

CAD Viewer Technical Data

Product Description

GN565.2 Cabinet U Shape Handle, Offset / Inclined.

The angled contact surface of these handles allows improved access even in tight spaces such as corners.

Produced from profiled aluminum extrusions they have an extremely strong and rigid yet ergonomic design, combined with a smooth surface, and are comfortable in use.

When coated the grip is further enhanced.

The manufacturing process (bending) allows the production of special lengths in relatively small quantities.

In type B lens screws, hexagon nuts and washers are included parts of the order.

Specification

Aluminium.

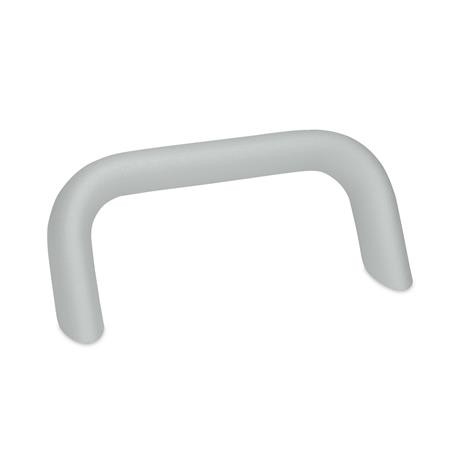

Plastic coated, black, RAL 9005, textured finish SW. Silver, RAL 9006, textured finish SR.

Anodized, natural colour EL.

Blank BL, tumbled.

Type B: Lens screws ISO 7380-M6-25, Hexagon nuts ISO 4032-M6, Washers DIN 125, Steel, zinc plated, blue passivated.
