GN628.3 Cabinet U Handles, Flexible Plastic

Close Next Previous

GN628.3 Cabinet U Handles, Flexible Plastic, DBL Blue

Close Next Previous

GN628.3 Cabinet U Handles, Flexible Plastic, DGB Yellow

Close Next Previous

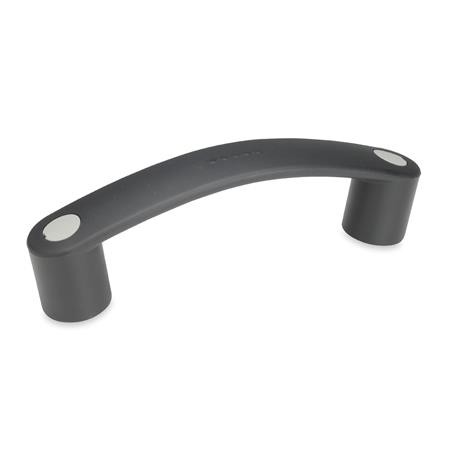

GN628.3 Cabinet U Handles, Flexible Plastic, DGR Grey

Close Next Previous

GN628.3 Cabinet U Handles, Flexible Plastic, DOR Orange

Close Next Previous

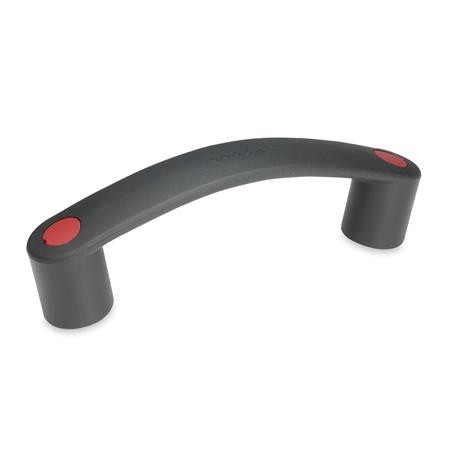

GN628.3 Cabinet U Handles, Flexible Plastic, DRT Red

Close Next Previous

GN628.3 Cabinet U Handles, Flexible Plastic, DSG Dark Grey

CAD Viewer

Technical Data

Choose your Part

Please select desired options to reveal part number, price and availability

l₁ Length

117 150

Type

Colour (Cap)

DGN DBL DGB DGR DOR DRT DSG

Part Selected:
GN628.3-150-B-DGR £12.02 (£14.42 inc VAT) Copy Link to Selected Part
Value discounts applied at basket

Stock Availability

No Stock for immediate dispatch

Options

Type B - Mounting from the operator's side.

Product Description

GN628.1 Cabinet U Handles with Flexible Plastic

The GN 628.3 Cabinet U handles are manufactured out of a flexible plastic material. They were developed for easy assembly on arched surfaces.

They cover the sizes from Ø 300 up to Ø 600. For Ø sizes bigger than 600, the standard version GN 628 can be used.

The design of these cabinet U handles matches the Ergostyle® product family. The cover caps are supplied loose, in a range of colours.

Specification

Plastic - Technopolymer (Polypropylene PP with Elastomer TPE), temperature resistant up to 80 °C, dark grey, matt, similar to RAL 7021

Bushing - Brass

Cover Cap Colour:

- Black, RAL 7021, matt DSG.
- Orange, RAL 2004, matt DOR.
- Grey, RAL 7035, matt DGR.
- Yellow, RAL 1021, matt DGB.
- Blue, RAL 5024, matt DBL.
- Red, RAL 3000, matte DRT.
