GN6284 Cabinet U Handles, Plastic, with Electrical Switching Function, LED Illuminated, Plug Connection

Close Next Previous

CAD Viewer

Technical Data

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type T - with button

Identification number 1 - contact block 1 NC / 1 NO

Identification number 2 - contact block 2 NC

Connection type SU - plug on the bottom

Product Description

GN6284 Cabinet U Handles, Plastic, with Electrical Switching Function, LED Illuminated, Plug Connection

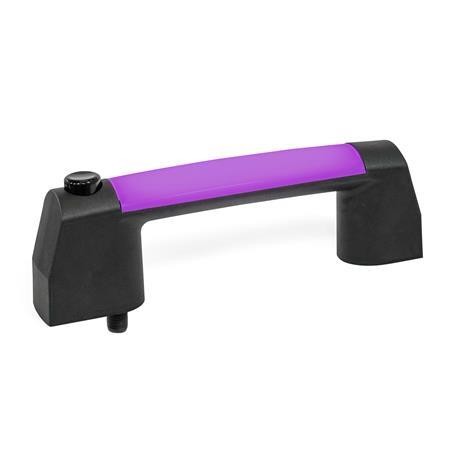

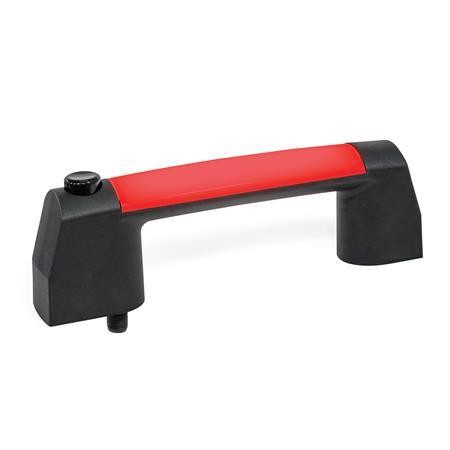

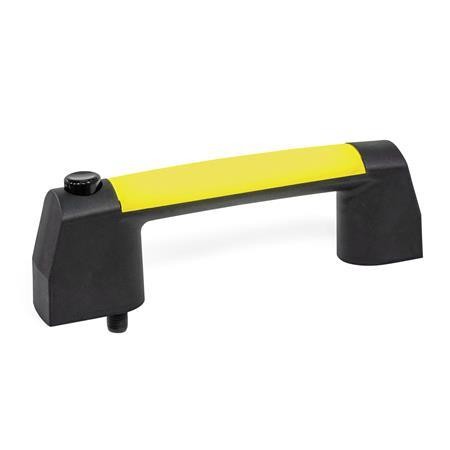

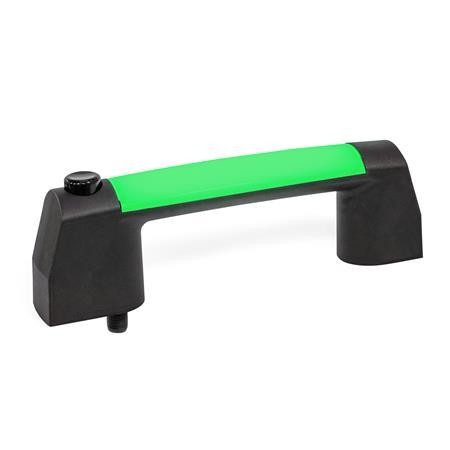

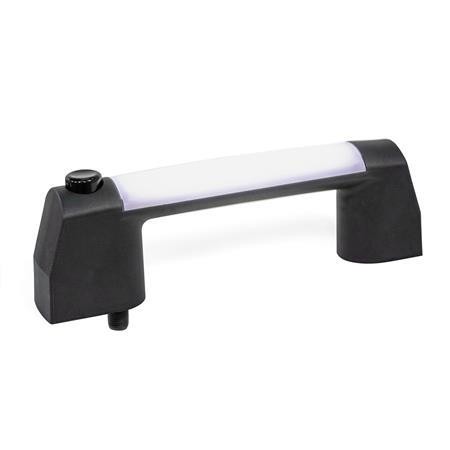

Cabinet U-handles GN 6284 have a button and RGB LED lighting on the back of the handle.

Depending on the identification no., the button is equipped with one NC contact and one NO contact or two NC contacts and triggers an electrical control signal, e.g. for a machine control system.

The integrated RGB LED handle lighting can serve as a status indicator for a controller, for example. Various colors can be realized by combining red, blue and green light.

Complementary cabinet U-handles without switching function are available as GN6284.1.

Specification

Plastic - Polyamide PA, glass fibre reinforced, self extinguishing, UL-94 V0, operating temperature -20° C to +50° C, black, matt finish.
LED light diffuser - plastic, polycarbonate PC, self extinguishing, UL-94 V0, opaque, white.
Button - plastic, polyamide PA, black
Threaded bushing - brass

Accessory

Cables with connector coupling GN330 (8-pole, 5 or 10 meters long).
