GN666.7 Tubular Handles Operator Side Mount clean room medical food special length

All Stainless Steel Products
Standard Parts for Clamping & Operating & Machine Fixtures > Cabinet, U & Tubular Handles, Gripping Trays > Tubular Handles
< Previous Product Next Product >

GN666.7 Tubular Handle, Stainless Steel

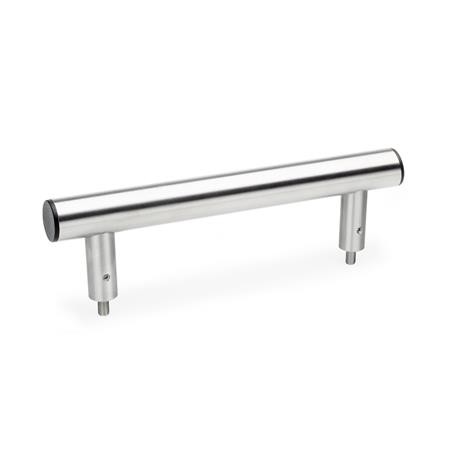

Type K - with plastic cover cap.

Type E - with stainless steel cover cap.

Select Values to Buy:

Tech Spec:



GN666.7 Tubular Handle, Stainless Steel

These stainless steel tubular handles are ideal for use in a hygienic, clean room environment, such as found in the food and medical industries and their associated processing and packaging. Type E is made completely from A2 stainless steel, making it particularly useful.

These handles mount from the operators side.To mount these handles (mounting from the back) the stud is first screwed in from the machine side with the threaded pin DIN913-M8x25 (included) and then the handle is pushed on and secured with the grub screw DIN914-M5.

Special lengths are available on request.

Specification

Tube diameter 30 x 1.5.

Stainless Steel, AISI 304

Handle shanks - Stainless Steel, AISI 304

Mounting stud - with threaded pin DIN 913-M8, Stainless Steel, AISI 304.

Grub screw DIN 914-M5 - Stainless Steel, AISI 304

Cover caps - Type K, Plastic (Polyamide PA), black matt. Type E - Stainless Steel, AISI 304.

RoHS compliant



Select / Deselect Visible Columns
Close
Hided1Show
Hided3Show
Hidel1 ±0.5mmShow
HideTypeShow
Hidel2 ±0.3mm
Thread for
Mounting Stud
of GN666.7
Show
Hided4Show
HidehShow
Hidel3Show
Hidel4Show
Hidet Min.Show
HideMaterialShow
PartCoded1d3l1 ±0.5mmTypel2 ±0.3mm
Thread for
Mounting Stud
of GN666.7
d4hl3l4t Min.MaterialMass

GN666.7-30-M8-200-K30M8200K20020602651515NI0.609
GN666.7-30-M8-200-E30M8200E20020602651515NI0.581
GN666.7-30-M8-250-K30M8250K25020603151515NI0.54
GN666.7-30-M8-250-E30M8250E25020603151515NI0.64
GN666.7-30-M8-300-K30M8300K30020603651515NI0.7
GN666.7-30-M8-300-E30M8300E30020603651515NI0.645
GN666.7-30-M8-400-K30M8400K40020604651515NI0.4
GN666.7-30-M8-400-E30M8400E40020604651515NI0.796
GN666.7-30-M8-500-K30M8500K50020605651515NI0.8
GN666.7-30-M8-500-E30M8500E50020605651515NI0.9
GN666.7-30-M8-600-K30M8600K60020606651515NI0.86
GN666.7-30-M8-600-E30M8600E60020606651515NI0.99
