GN669 Modular System Handles Mountable Back swinging door cover ideal GN 669

Standard Parts for Clamping & Operating & Machine Fixtures > Cabinet, U & Tubular Handles, Gripping Trays > Tubular Handles
< Previous Product Next Product >

GN669 Modular System Handle, Aluminium, Plastic Coated Option









Type A - Mounting From The Back

Type B - Mounting From The Operators Side

Select Values to Buy:

Tech Spec:



GN 669 Modular System Handle

These modular system handles offer the the advantage of high stability when using short handles. Handle and mounting feet are firmly screwed together and the screws are shrouded. These handles can also be supplied as hand railing.

Handle tubes and end pieces are available on request.

Specification

Aluminium

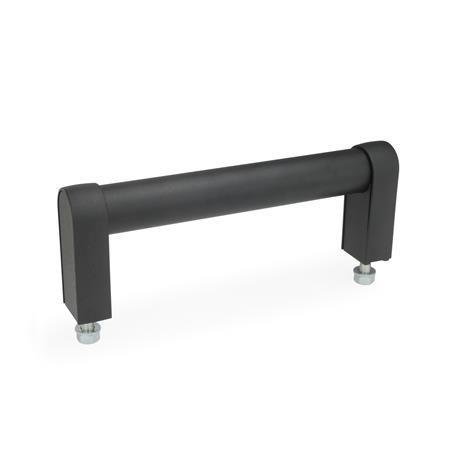

Handle tube / end pieces - Plastic coated, black SW RAL 9005, textured finish.

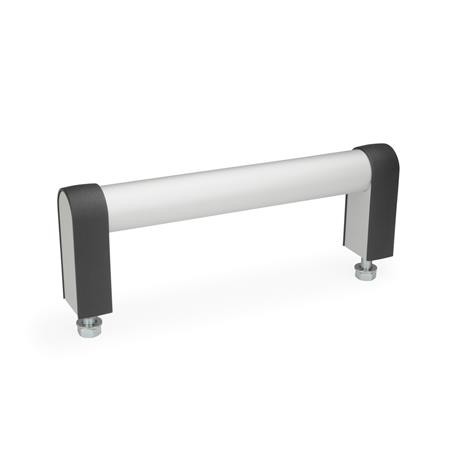

Handle tube / end pieces - anodized EL, natural colour.

End cover plastic, Technopolymer (Polyamide), black, matt.

Socket head screws DIN912-M8x75 - steel, zinc plated.

Hexagon nuts ISO4032-M8 - steel, zinc plated.

Washers DIN125 - steel, zinc plated.

RoHS compliant

Select / Deselect Visible Columns
PartCoded1l1TypeFinishbd2hl2l3l4tMaterialMass

GN669-28-200-A-SWAL2820032M8602201802015ASW0.195
GN669-28-200-B-SWAL2820032M8602201802015BSW0.24
GN669-28-200-A-ELAL2820032M8602201802015AEL0.18
GN669-28-200-B-ELAL2820032M8602201802015BEL0.245
GN669-28-250-A-SWAL2825032M8602702302015ASW0.21
GN669-28-250-B-SWAL2825032M8602702302015BSW0.24
GN669-28-250-A-ELAL2825032M8602702302015AEL0.208
GN669-28-250-B-ELAL2825032M8602702302015BEL0.24
GN669-28-300-A-SWAL2830032M8603202802015ASW0.233
GN669-28-300-B-SWAL2830032M8603202802015BSW0.315
GN669-28-300-A-ELAL2830032M8603202802015AEL0.22
GN669-28-300-B-ELAL2830032M8603202802015BEL0.275
GN669-28-400-A-SWAL2840032M8604203802015ASW0.27
GN669-28-400-B-SWAL2840032M8604203802015BSW0.32
GN669-28-400-A-ELAL2840032M8604203802015AEL0.26
GN669-28-400-B-ELAL2840032M8604203802015BEL0.3
GN669-28-500-A-SWAL2850032M8605204802015ASW0.31
GN669-28-500-B-SWAL2850032M8605204802015BSW0.35
GN669-28-500-A-ELAL2850032M8605204802015AEL0.29
GN669-28-500-B-ELAL2850032M8605204802015BEL0.325
GN669-28-600-A-SWAL2860032M8606205802015ASW0.34
GN669-28-600-B-SWAL2860032M8606205802015BSW0.44
GN669-28-600-A-ELAL2860032M8606205802015AEL0.295
GN669-28-600-B-ELAL2860032M8606205802015BEL0.4
